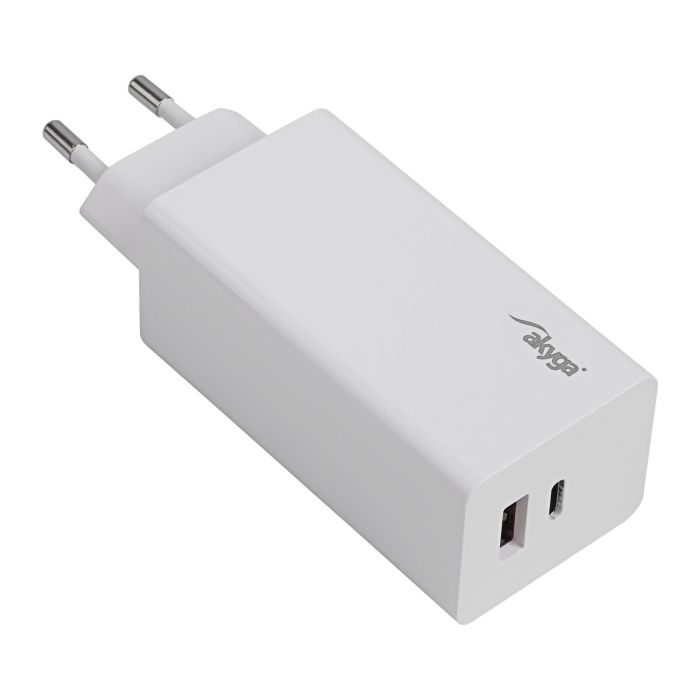

Wall charger Akyga AK-CH-20 100W USB-C USB-A PD GaN 5-20V / 1.5-5A white
- Product code AK-CH-20
- Product typeAC/DC adapter
- SeriesUniversal
- Supply voltage110-240 V / 50/60 Hz
- Power consumption< 1.6 A
- Maximum power100 W (USB-C) or (65 W + 18 W)
- Mechanical switchNone
- Ground wireNone (II protection class)
- OVPYes
- OCPYes
- OTPYes
- SCP Yes
- Power supply connectorCEE 7/16 (Europlug)
- USB-A output voltage5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A (Max. 18 W)
- USB-C output voltage5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A (Max. 100 W)
- Compliance with DCP (Dedicated Charging Port)Yes
- MaterialABS
- Product colorWhite
- DisplayNone
- MTBF100000 h
- Temperature5 - 50 °C
- PackageEcoBox
- Product size (L x W x H)112 x 39 x 32 mm
- Package size (L x W x H)180 x 87 x 36 mm
- Net weight148 g
- Gross weight183 g
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720137814
- Warranty24 months
The Akyga® AK-CH-20 GaN charger is a state-of-the-art power solution for mobile devices. It is lightweight and handy, and its high performance allows it to quickly charge devices with a maximum power of 100 watts. What's more, the use of new GaN material has made it possible to significantly reduce the size of the charger. Therefore, the power supply is ideal for use both at home and on the go. The mains charger has two USB ports. One USB Type A port with 18 W and one USB Type C port (100 W). This allows it to charge two devices simultaneously. In addition, the charger supports the Quick Charge 3.0 and Power Delivery 3.0 technologies, which are responsible for fast and safe charging. Therefore, the charger is suitable for powering smartphones as well as laptops and other devices used on a trip.
