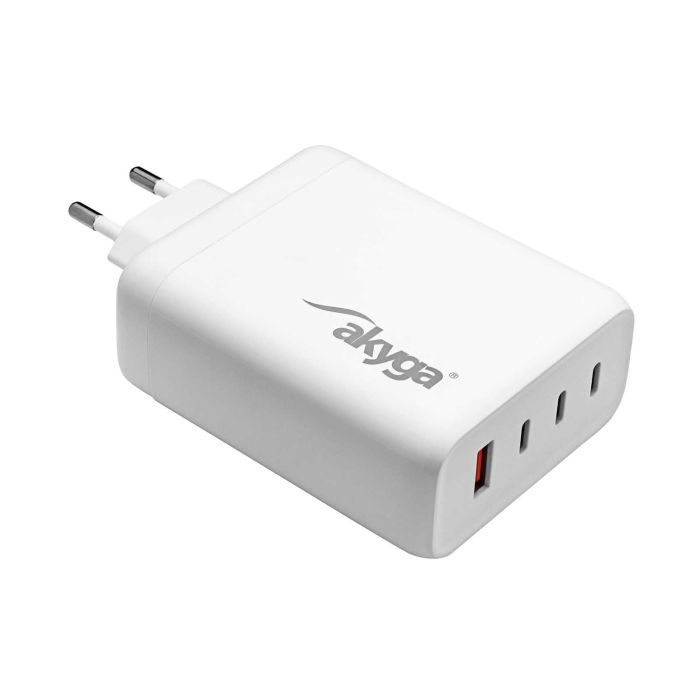

Wall charger Akyga AK-CH-24 140W 3x USB-C + USB-A PD GaN 5-28V / 1.5-5A white
- Product code AK-CH-24
- Product typeAC/DC adapter
- SeriesUniversal
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Supply voltage110-240 V / 50/60 Hz
- Power consumption< 0.5 A
- Maximum power140 W
- StandardQuick Charge 3.0, Power Delivery 3.0, GaN
- Mechanical switchNone
- Ground wireNone (II protection class)
- OVPYes
- OCPYes
- OTPYes
- SCP Yes
- Power supply connectorCEE 7/16 (Europlug)
- USB-A output voltage5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A (Max. 30 W)
- USB-C output voltagePD1/PD2: 5.2 V / 3 A, 9 V / 3 A, 15 V / 3 A, 20.5 V / 5 A, 28 V / 5 A (Max. 140 W), PD3: 5 V / 3 A,9 V / 3 A,12 V / 2.5 A,15 V / 2 A,20 V / 1.5 A (Max. 30 W)
- Compliance with DCP (Dedicated Charging Port)Yes
- MaterialABS
- Product colorWhite
- DisplayNone
- MTBF100000 h
- Temperature5 - 50 °C
- PackageEcoBox
- Product size (L x W x H)121 x 70 x 35 mm
- Package size (L x W x H)180 x 100 x 40 mm
- Net weight266 g
- Gross weight304 g
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139368
- Warranty24 months
The Akyga® AK-CH-24 USB-C charger is an advanced device that offers a maximum power of 140 W, providing fast and efficient charging for even the most demanding devices. Thanks to GaN (gallium nitride) technology, the charger is not only efficient but also compact and energy-saving. This technology minimises energy losses, resulting in reduced heat emission, increased efficiency, and smaller device size.
The AK-CH-24 GaN charger is equipped with three USB Type C ports and one USB Type A port. The large number of ports makes the charger ideal for families, offices and people travelling with multiple devices. The ability to charge several devices at the same time eliminates the need for multiple chargers, which is particularly useful in areas with limited electrical outlets.
What's more, the mains charger supports a voltage range of 5 to 28 V and a maximum current of 5 A, providing versatility and wide compatibility with a variety of electronic devices. Power Delivery (PD) and Quick Charge technologies allow the charging power to be automatically adapted to the specifications of the connected device, guaranteeing safe and optimal charging. As a result, the device enables fast charging of smartphones, tablets, laptops, powerbanks, and other high-power devices.
In addition, the USB-C charger has no built-in USB cables, giving users the option to choose the appropriate length and type of cables to suit their needs. This further adds to the flexibility and convenience of use.
