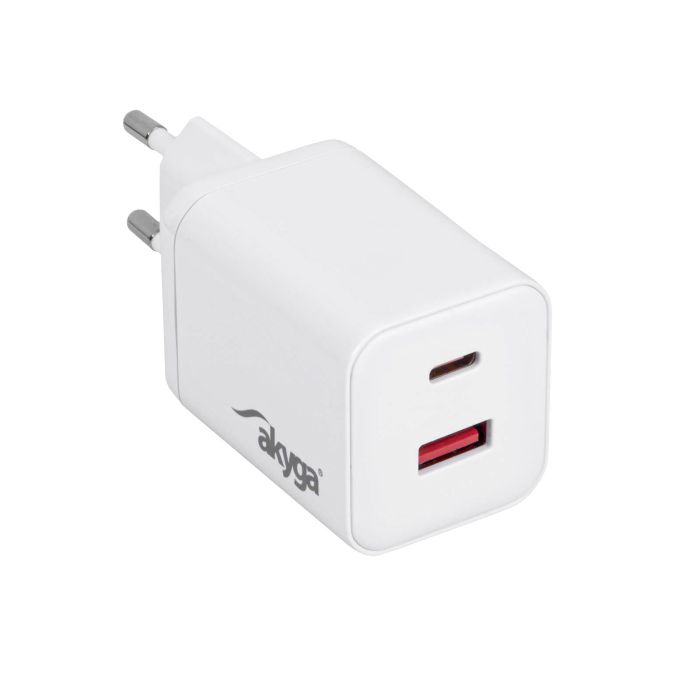

Wall charger Akyga AK-CH-28 45W USB-C USB-A PD GaN 5-20V / 2.25-3A white
- Product code AK-CH-28
- Product typeAC/DC adapter
- SeriesUniversal
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Supply voltage110-240 V / 50/60 Hz
- Power consumption< 0.25 A
- Maximum power45 W (USB-C) or 2x 15 W (5 V / 3A)
- StandardQuick Charge 3.0, Power Delivery 3.0, Samsung AFC, Huawei FCP, Apple 2.4A, PPS, GaN
- Mechanical switchNone
- Ground wireNone (II protection class)
- OVPYes
- OCPYes
- OTPYes
- SCP Yes
- Power supply connectorCEE 7/16 (Europlug)
- USB-A output voltage5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, 15 V / 2 A, 20 V / 1.5 A (Max. 30 W)
- USB-C output voltage5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 2.25 A (Max. 45 W), PPS: 5-11 V / 3 A, 5-21 V / 2..25 A
- Compliance with DCP (Dedicated Charging Port)Yes
- MaterialABS
- Product colorWhite
- DisplayNone
- MTBF100000 h
- Temperature-10 – 35 °C
- PackageEcoBox
- Product size (L x W x H)87 x 37 x 34 mm
- Package size (L x W x H)100 x 85 x 40 mm
- Net weight70 g
- Gross weight103 g
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5906708750641
- Warranty24 months
The Akyga® AK-CH-28 is a powerful USB-C charger with an additional classic USB-A port, designed for the most demanding mobile device users. Supporting fast charging and delivering up to 45 W, it can easily handle not only smartphones and tablets, but also larger devices such as laptops, power banks, and Nintendo Switch consoles. Reliable, compact and ready to work wherever fast and safe charging is important.
GaN technology – more power, smaller size
The use of modern GaN (gallium nitride) technology has made it possible to reduce the size of the charger without compromising its performance. As a result, the Akyga® AK-CH-28 maintains high power in a small housing, operates with minimal heat, and ensures stable charging even during prolonged use. It’s the ideal choice for those who value durable, energy-efficient accessories for everyday use.
USB-C and USB-A ports – freedom in every situation
The Akyga® AK-CH-28 mains charger offers two independent ports – a modern USB-C with Power Delivery technology support and a universal USB-A port with fast charging function. This combination ensures full compatibility with a wide range of devices – both the latest and older models. One of its biggest advantages is the ability to connect any USB cables, of various lengths and with different connectors, allowing you to perfectly tailor the configuration to your needs and equipment. The charger intelligently manages power, allowing you to charge two devices simultaneously and safely. It is the perfect solution for users who expect reliability, versatility and comfort every day – both at home and on the go.
Support for fast charging standards
The AK-CH-28 charger supports almost all fast charging standards, making it an extremely versatile solution for users of different brands of mobile equipment. Supported technologies include Quick Charge 3.0 and 2.0, Apple 2.4A, BC1.2, AFC-9V, PE1.1, PE2.0, FCP, SCP, as well as Power Delivery versions 3.0 and 2.0 and the modern PPS standard. Such wide compatibility ensures that the charger can easily power smartphones and tablets from brands such as Samsung, Apple, Huawei, Xiaomi, Google, Lenovo and many others – always adjusting the charging parameters to the requirements of the specific device.
