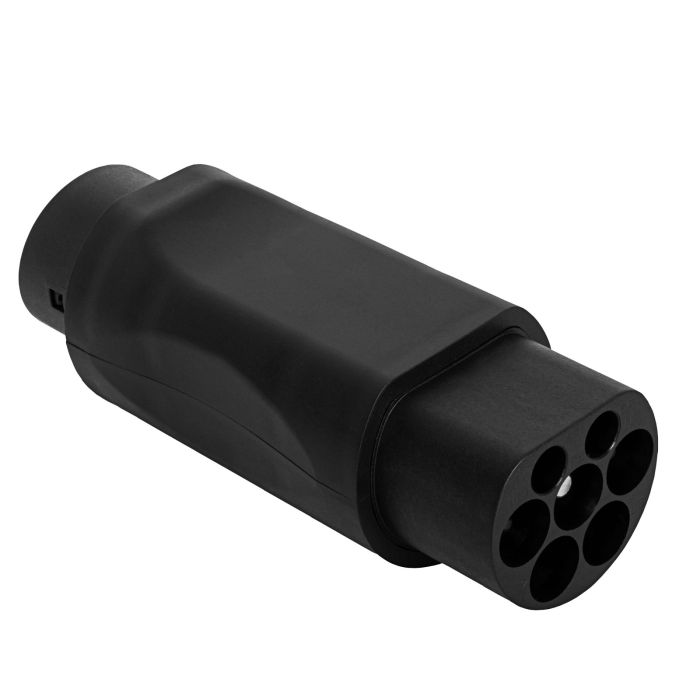

Adapter for electric cars Akyga AK-SC-E08 Type2 (f) / Type1 (m) 32A
Usefull materials
- Product code AK-SC-E08
- Supply voltage250 V
- Number of phases1 phase
- Maximum current32 A
- Maximum power8 kW
- Flame resistanceUL94V-0
- IP RatingIP55
- The cable plug #1Type 2 (IEC 62196-2) Male Connector
- The cable plug #2Type 1 (J1772) Female Connector
- Plated plugsSilver
- MaterialTPE
- Product colorBlack
- Temperature-30 / +50 °C
- PackageCarton box
- Product size (L x W x H)59 x 61 x 163 mm
- Package size (L x W x H)72 x 72 x 180 mm
- Net weight291 g
- Gross weight334 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720137821
- Warranty24 months
Description
The Akyga AK-SC-E08 adapter is used to convert a Type 2 connector to Type 1. On one side of the adapter is a standard Type 2 socket, which fits most EV chargers found at public charging stations in Europe. At the other end, there is a Type 1 plug, which can be used to charge an EV with the J1772 socket, which is found on older cars and those imported from overseas. What is more, the adapter is made of high-quality materials that guarantee its long service life and trouble-free operation.
