Charger for Electric Cars Akyga AK-EC-22 CEE 5pin Type2 LCD 3-Phases 32A 22kW 5m
- Product code AK-EC-22
- Product typeElectric Car Accessory
- Hole for padlockNo
- Supply voltage240-450 V / 50/60 Hz
- Number of phases3 phase
- Maximum current32 A
- Maximum power22 kW
- Ground wireYes
- Flame resistanceUL94V-0
- IP RatingIP54
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- Cable length5 m
- The cable plug #1CEE 5pin (IEC 60309)
- The cable plug #2Type 2 (IEC 62196-2) Female Connector
- Cable materialCopper
- Wire gauge5 x 6 mm2 + 2 x 0.5 mm2
- Isolation materialTPE
- MaterialABS
- Product colorBlue
- DisplayYes
- MTBF10000 h
- Temperature-30 / +50 °C
- PackageProtective bag
- Product size (L x W x H)5000 x 150 x 85 mm
- Package size (L x W x H)380 x 380 x 100 mm
- Net weight4.2 kg
- Gross weight4.44 kg
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- Included accessoriesAK-AC-02
- EAN code5906708750085
- Warranty24 months

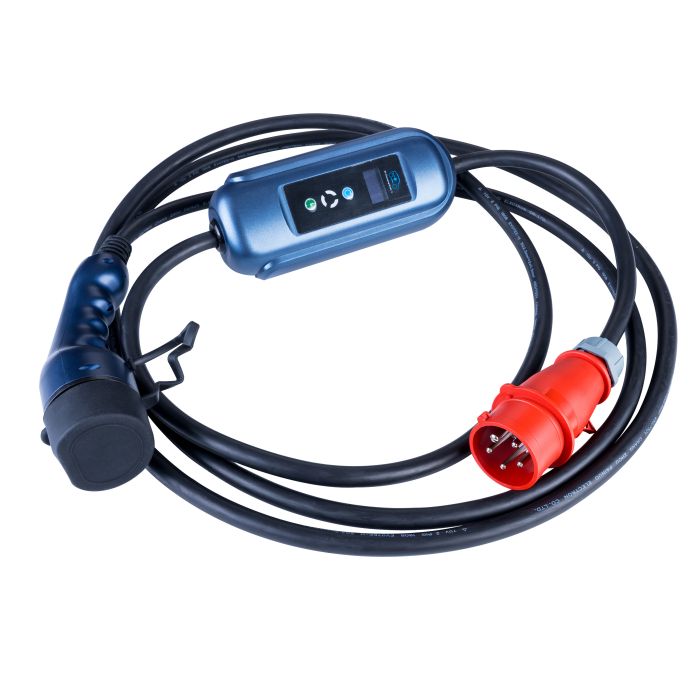

The Akyga® AK-EC-22 is a three-phase electric vehicle charger designed for fast and efficient charging. It features a 5-metre cable terminated with Type 2 and CEE 5-pin plugs. The Type 2 connector is recognised as the European standard for EV charging, ensuring compatibility with most electric cars on the market. The CEE 5-pin plug allows charging from 400 V power electrical sockets, which maximises the capacity of the charger.
Charging and Protection Technologies Used
The AK-EC-22 electric car charger features advanced protections such as OVP, OCP, OPP, OTP, SCP and special Type B RCD protection. These features provide protection against excessive current, voltage and overheating of both the charger and the vehicle battery. They also protect against dangerous DC current flows, ensuring safety during each charging session.
Functionality and Control

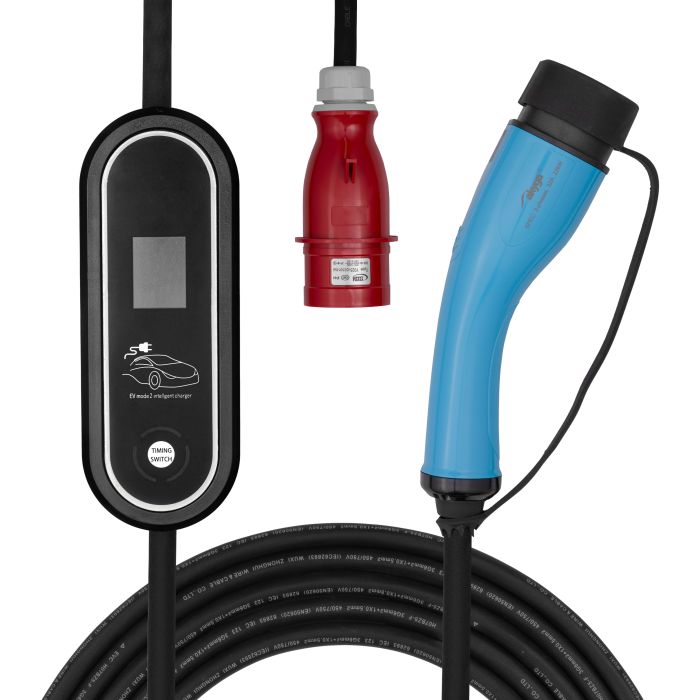

The centrepiece of the EV charger is the ControlBox, which offers adjustable charging current. This is a huge advantage, allowing the user to adapt the charging power to the current energy needs and network conditions. The car charger allows the user to choose from four current settings: 10 A, 16 A, 24 A and 32 A. This allows the charger to be connected both in the home garage and in more demanding commercial locations. What's more, the built-in LCD screen allows monitoring of key charging parameters such as current, wattage, mains voltage, total energy drawn by the device, charger temperature and charging time.
Vehicle Compatibility
The AK-EC-22 electric car charger is compatible with a wide range of EV models, including the Audi A3 e-Tron, BMW i3, BMW i8, Chevrolet Spark, Mercedes B-Class E-Celi, Mercedes S500 PHEV, Mercedes SLS EV, Mercedes Vito E-Cell Van, Porsche Panamera S PHEV, Volkswagen e-Up, Volkswagen e- Golf, Volvo V60 PHEV and many more. It is ideal for owners of a various electric car brands looking for a reliable and efficient charger.
Ideal for the Home
With the ability to charge with a current of 10 A to 32 A and a power output of up to 22 kW, the AK-EC-22 charger is ideal for users who want to charge their vehicles quickly and efficiently at home using a power outlet in the garage.
