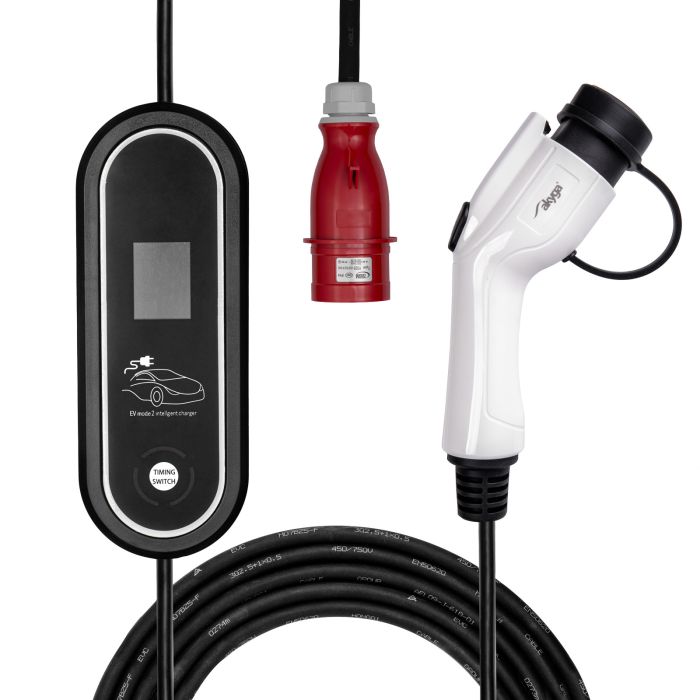

Charger for Electric Cars Akyga AK-EC-24 CEE 5pin GB/T LCD 3-Phases 32A 22kW 5m
- Product code AK-EC-24
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typeElectric Car Accessory
- Hole for padlockNo
- Supply voltage240-450 V / 50/60 Hz
- Number of phases3 phase
- Maximum current32 A
- Maximum power22 kW
- Ground wireYes
- Flame resistanceUL94V-0
- IP RatingIP54
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- Cable length5 m
- The cable plug #1CEE 5pin (IEC 60309)
- The cable plug #2GB/T (20234.2-2015) Male Connector
- Cable materialCopper
- Wire gauge5 x 6 mm2 + 2 x 0.5 mm2
- Isolation materialTPE
- MaterialABS
- Product colorBlue
- DisplayYes
- MTBF10000 h
- Temperature-30 / +50 °C
- PackageProtective bag
- Package size (L x W x H)430 x 400 x 100 mm
- Net weight3.7 kg
- Gross weight4.1 kg
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- Included accessoriesAK-AC-02
- EAN code5906708750917
- Warranty24 months
Akyga® AK-EC-24 is a three-phase GB/T charger designed for electric vehicles imported from China. This professional solution eliminates the compatibility issue between the GB/T standard and European charging stations. The adapter enables fast charging at home — without the need to use public charging stations. With this adapter, owners of electric vehicles from BYD, NIO, Xpeng and SAIC can fully utilise charging networks across Poland and Europe.
An alternative way to charge Chinese electric vehicles
The AK-EC-24 GB/T charger has a three-phase CEE 5-pin plug (400 V), which allows charging at up to 22 kW — much faster than single-phase solutions. This makes it ideal for use in a home garage. It is a practical and cost-effective option for any GB/T standard vehicle that needs a reliable power source on a daily basis.
Adjustable charging current – full control over power
The AK-EC-24 allows manual adjustment of the charging current, offering five selectable levels: 8 A, 10 A, 13 A, 16 A and 32 A. This gives users the flexibility to match the charging power to their electrical installation or temporary conditions – for example, reducing the load on a domestic circuit. This feature is essential for enhanced safety and comfort, especially when charging in different locations.
A practical replacement for a lost or damaged GBT charger
The AK-EC-24 model is also an ideal replacement when the original charger is lost or damaged. Its robust design, reliable connectors and full compatibility with Chinese electric cars BYD, NIO, Xpeng and SAIC manufactured for the Chinese market mean that the adapter can safely and effectively replace the factory device — with no compromise in quality or performance.
Advanced safety protocols
The built-in LCD display allows you to monitor operating parameters in real time – voltage, current, energy consumption and charging time. Built-in safety features (surge, overload and thermal protection) protect both the vehicle and the user, ensuring safety throughout the charging process.
Ready for use in various conditions
The 5-metre cable allows you to connect your vehicle even in less convenient locations. The IP54-rated housing is resistant to external factors and allows you to use the charger even in slightly more difficult weather conditions, e.g. in open shelters or under a roof.
