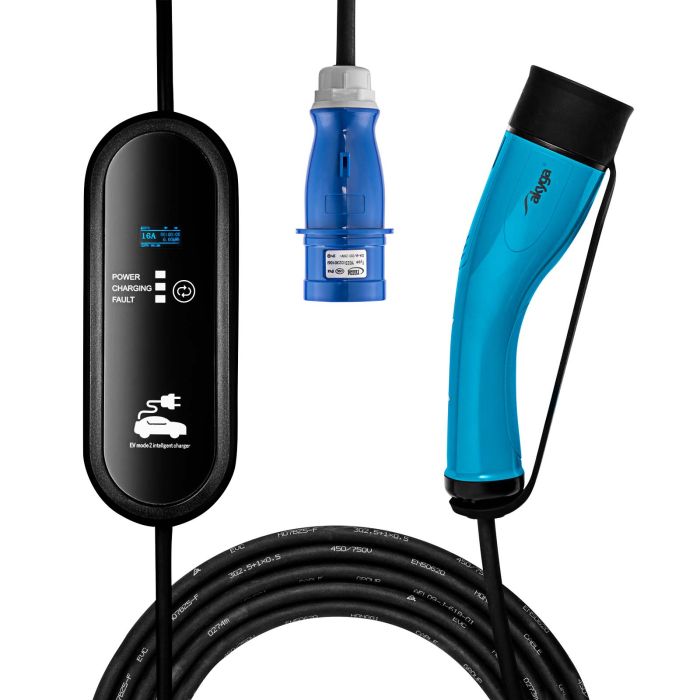

Charger for electric cars Akyga AK-EC-14 CEE 3pin Type2 LCD 1-phase 32A 7.2kW 5m
- Product code AK-EC-14
- Product typeElectric Car Accessory
- Hole for padlockNo
- Supply voltage110-250 V / 50/60 Hz
- Number of phases1 phase
- Maximum current32 A
- Maximum power7.2 kW
- Ground wireYes
- Flame resistanceUL94V-0
- IP RatingIP54
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- Cable length5 m
- The cable plug #1IEC 60309 3-pin
- The cable plug #2Type 2 (IEC 62196-2) Female Connector
- Cable materialCopper
- Wire gauge3 x 6 mm2 + 2 x 0.75 mm2
- Isolation materialTPE
- MaterialABS
- Product colorBlue
- DisplayYes
- MTBF10000 h
- Temperature-30 / +50 °C
- PackageProtective bag
- Product size (L x W x H)5000 x 150 x 85 mm
- Package size (L x W x H)380 x 380 x 100 mm
- Net weight2.8 kg
- Gross weight3.15 kg
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- Included accessoriesAK-AC-02
- EAN code5901720136848
- Warranty24 months
Akyga® AK-EC-14 is a single-phase charger for electric cars with increased charging power. The high-quality IEC 60309 connector will allow you to power your vehicle with 32 A, which gives up to 7.2 kW of power. This way you can quickly charge your electric car, even if you do not have a three-phase electrical installation. What's more, the charger allows you to adjust the current according to your needs and the capabilities of your electrical installation. Five current values are available: 6, 10, 16, 20 and 32 A. This way you can be sure that the internal charger of your electric car will not draw more power than your installation can handle.
The AK-EC-14 charger has a 5 m cable on which the practical ControlBox with integrated LCD display is located. Thanks to it, it is possible to regulate charging power, set a charging time limit and present basic parameters such as: charging current and power, mains voltage, total energy consumed by the device, charger temperature and charging time.
The type 2 plug (IEC 62196-2) used in the charger, fits most cars manufactured for the European market. These include, among others: Audi A3 e-Tron, BMW i3, BMW i8, Chevrolet Spark, Mercedes B-Class E-Celi, Mercedes S500 PHEV, Mercedes SLS EV, Mercedes Vito E-Cell Van, Porsche Panamera S PHEV, Volkswagen e-Up, Volkswagen e- Golf, Volvo V60 PHEV.
To take full advantage of the charger's capabilities, a 32 A electrical installation and properly selected fuses are required.
