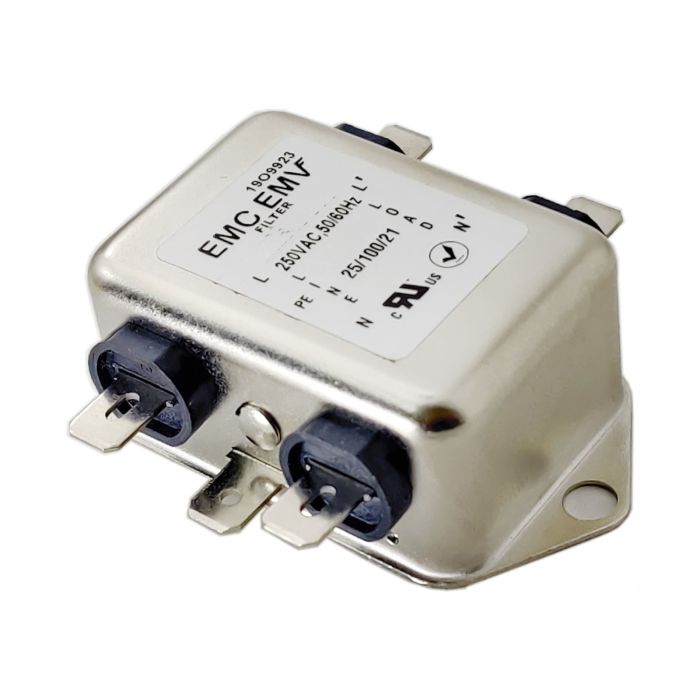

Single phase EMI filter Akyga EMC EMV EN2010-1-F 1A 120-250VAC 50/60Hz
- Product code EN2010-1-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current1 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)61 x 56 x 22 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138415
Description
The EN2010-1-F EMI filter is a specialised solution designed for low-current equipment where precision and reliability are of paramount importance. With a maximum operating current of 1 A, the EMI filter is ideal for sensitive electronic systems such as measuring equipment, laboratory equipment or automation components that are particularly susceptible to electromagnetic interference. Its robust metal housing and wide operating temperature range of -25°C to +100°C make it resistant to harsh environmental conditions. The ideal choice for precision electronic applications where reliability and operational safety are important.
