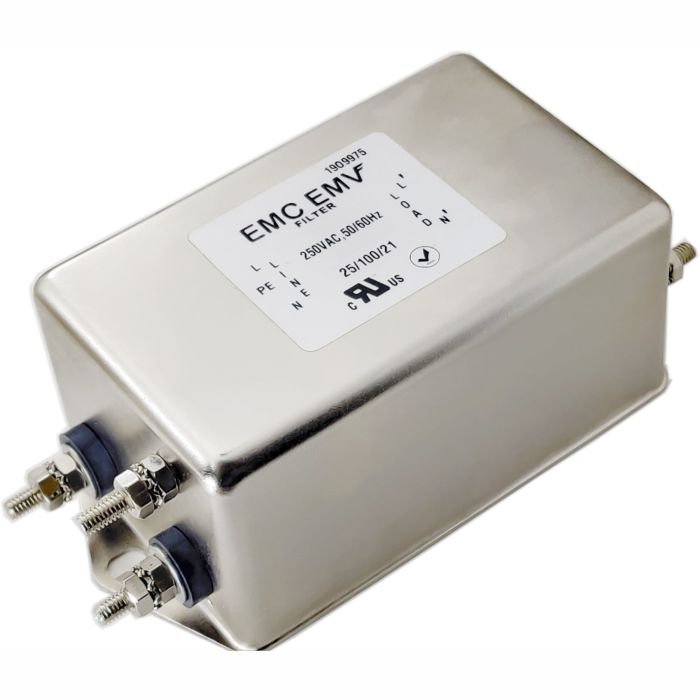

Single phase EMI filter Akyga EMC EMV EN2010-30-S 30A 120-250VAC 50/60Hz
- Product code EN2010-30-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current30 A
- LeadsM4 connectors
- Leakage current0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)124 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138507
The EN2010-30-S EMI filter is a powerful ally in protecting high-power consumption installations from electromagnetic interference. Rated for up to 30 A, it excels in demanding environments - from industrial machinery to advanced server room power systems. Thanks to its M4 screw connectors, it not only provides a robust and durable connection, but also convenient installation in installations with larger cable cross-sections.
This double-pole EMI interference filter is designed with reliability in mind: the metal housing effectively shields interference, and the wide voltage and temperature range allows it to be used in almost any environment. EN2010-30-S is a sure thing where the slightest deviation from the standard can have serious consequences.
