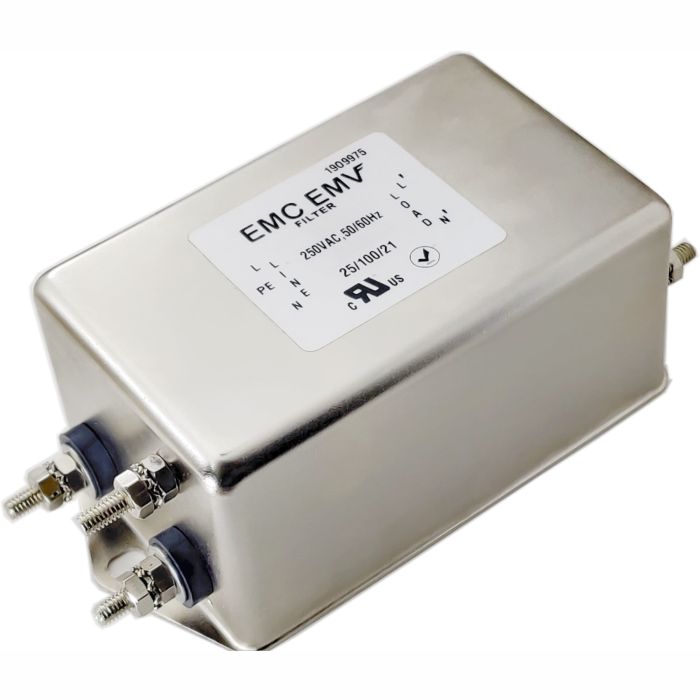

Single phase EMI filter Akyga EMC EMV EN2020-30-S 30A 120-250VAC 50/60Hz
- Product code EN2020-30-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current30 A
- LeadsM4 connectors
- Leakage current0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)124 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138583
Description
The EN2020-30-S EMI filter is an effective anti-interference solution designed for demanding conditions and high current loads up to 30 A. Designed for industrial applications, server rooms, power systems and advanced automation installations, it effectively protects equipment from electromagnetic interference, ensuring stable and reliable operation.
The outputs in the form of M4 screw connectors guarantee a durable, secure connection and allow installation even with larger cross-section cables. The metal housing ensures durability and excellent shielding of external interference. The EN2020-30-S is an industrial-grade interference filter - indispensable where maximum protection and uncompromising power supply quality count.
