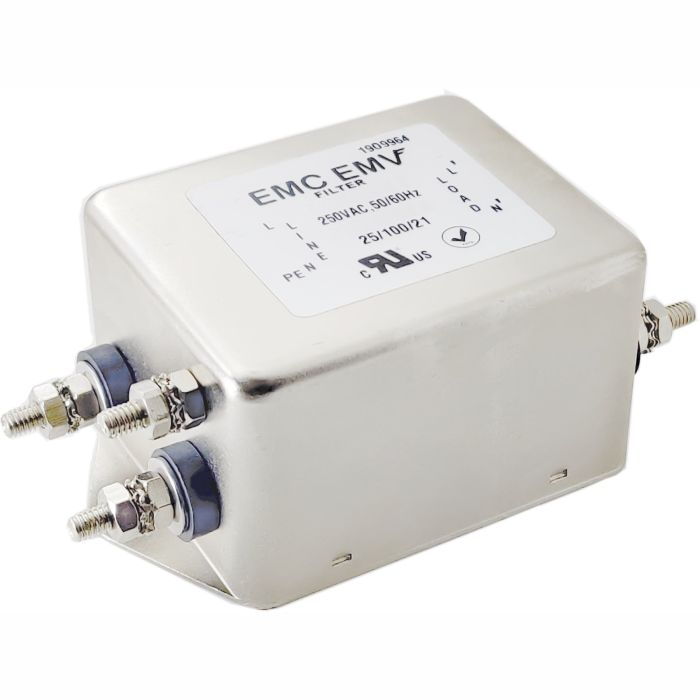

Single phase EMI filter Akyga EMC EMV EN2030-30-S 30A 120-250VAC 50/60Hz
- Product code EN2030-30-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current30 A
- LeadsM4 connectors
- Leakage current0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)95 x 52 x 84 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138682
Description
The EN2030-30-S EMI filter is a high-performance solution designed for applications where stability and reliability count. With a maximum operating current of 30 A, it is ideal for intensive industrial systems, high-power power supplies, data centres or installations requiring special immunity to electromagnetic interference.
Equipped with M4 screw connectors, the EN2030-30-S EMI interference filter ensures a durable and secure connection even with larger cable cross-sections. The robust metal housing guarantees effective shielding, and the wide operating voltage and temperature range makes the filter successful in demanding technical conditions.
It is a component for professionals who expect maximum efficiency and long-term reliability.
