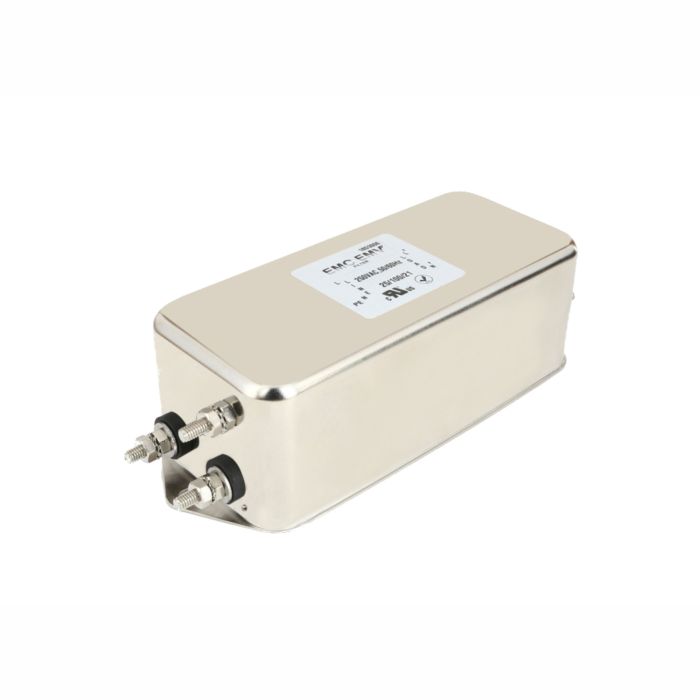

Single phase EMI filter Akyga EMC EMV EN2060-30-S 30A 120-250VAC 50/60Hz
- Product code EN2060-30-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current30 A
- LeadsM4 connectors
- Leakage current0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)140 x 85 x 58 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138774
Description
The EN2060-30-S EMI filter is a high-performance solution designed for applications requiring maximum protection against electromagnetic interference at high current loads. With support up to 30 A, it is ideal for industrial systems, high-powered power installations, server rooms and advanced automation systems.
The outputs in the form of M4 screw connectors ensure a robust and secure connection even with thick cables, while the metal housing effectively suppresses interference and protects against mechanical damage. The EN2060-30-S interference filter is a reliable component, designed for long-term, stable operation in demanding conditions.
