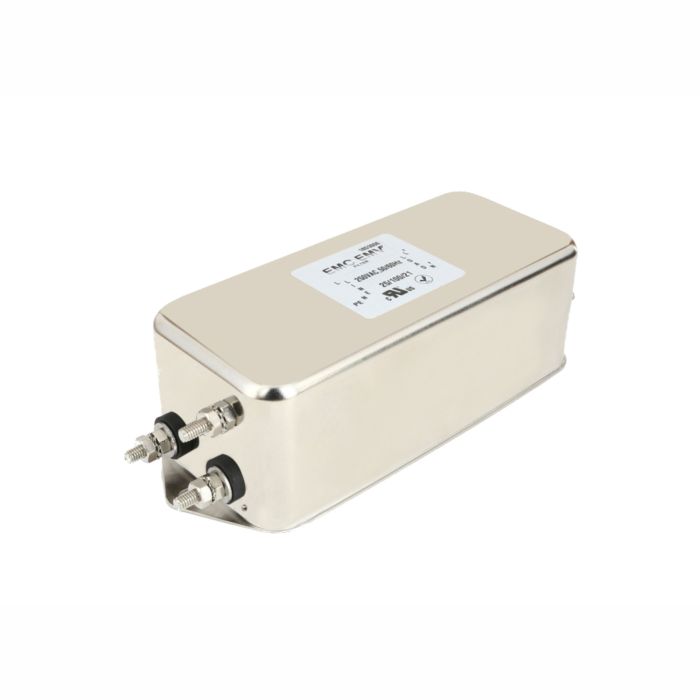

Single phase EMI filter Akyga EMC EMV EN2080-12-S 12A 120-250VAC 50/60Hz
- Product code EN2080-12-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current12 A
- LeadsM4 connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)162 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138927
Description
The EN2080-12-S EMI filter is the solution for systems requiring protection from electromagnetic interference when operating at up to 12 A. With leads in the form of M4 screw connectors, it provides a strong, durable connection, ideal for industrial installations, automation and demanding power supply applications.
The metal housing of the noise filter effectively protects against external interference and mechanical damage. The EN2080-12-S combines robustness, reliability and ease of installation, offering excellent protection for equipment operating in diverse conditions.
