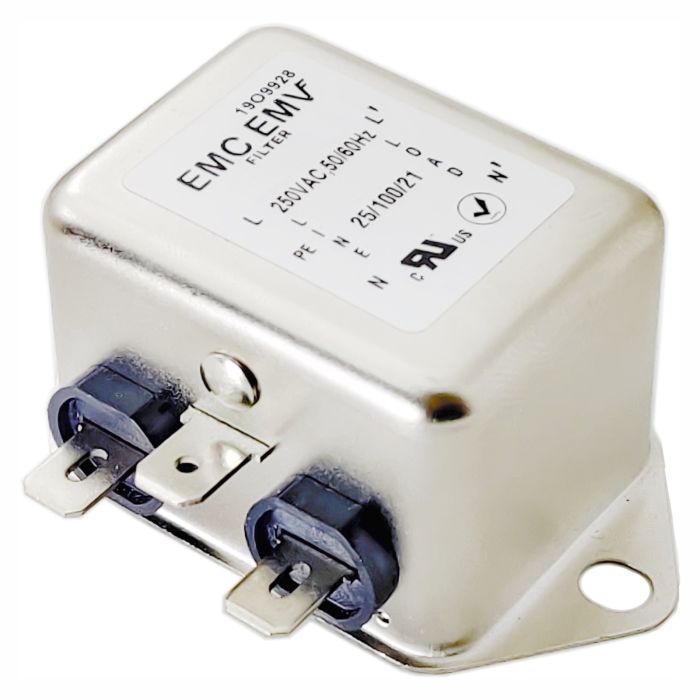

Single phase EMI filter Akyga EMC EMV EN2090-3-F 3A 120-250VAC 50/60Hz
- Product code EN2090-3-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current3 A
- Leads6.3 mm connectors
- Leakage current0.29mA @120 VAC 60 Hz, 0.50mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)86 x 52 x 29 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138965
Description
The EN2090-3-F EMI filter is a precision solution designed to protect sensitive electronic equipment from electromagnetic interference. With a maximum operating current of 3 A, it is ideal for measurement systems, automation, medical equipment and office equipment where power supply stability and reliability are crucial.
Thanks to the 6.3 mm connectors, installation of the filter is quick and convenient and the metal housing effectively protects against external interference. The low leakage current guarantees high efficiency and operational safety. The EN2090-3-F interference filter is the ideal choice wherever precision and protection of sensitive electronics is important.
