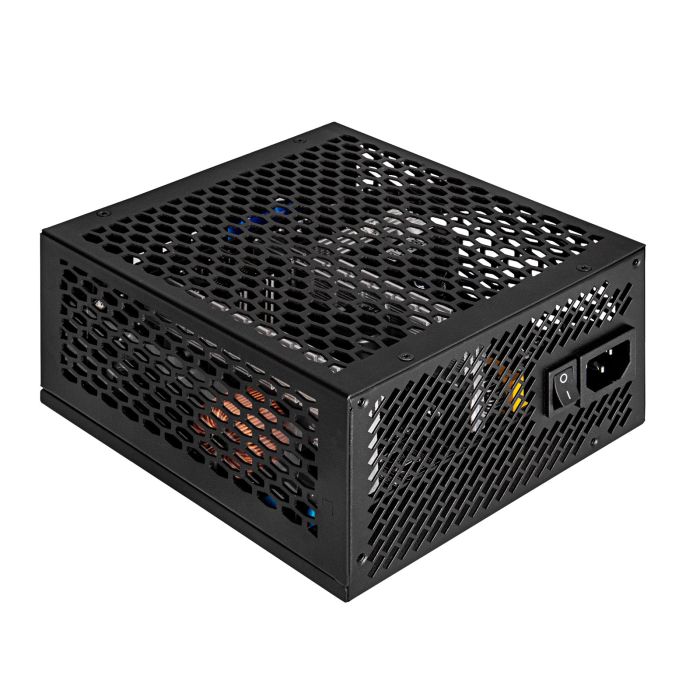

Passive ATX Power Supply 300W Akyga AK-FL-300 Full-Modular PCI-E 6+2 pin 4x SATA APFC 80+ Fanless
- Product code AK-FL-300
- Product typeComputer power supply
- FormatATX 2.31
- SeriesFanless
- Supply voltage230 V
- Power consumption5 A
- Efficiency> 80 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail18 A
- Current on the +5V rail 18 A
- Maximum load on +3.3V and +5V line75 W
- Current on the +12V rail25 A
- Maximum load on 12V line212 W
- Maximum power300 W
- Mainboard Power Connector24-pin
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6+2 pin 1 pc
- Molex connector2 pcs
- SATA connector4 pcs
- Modular power supplyYes
- PFC filterActive
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPYes
- Power supply connectorIEC C14
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- MTBF100000 h
- Temperature0 - 40 °C
- PackageEcoBox
- Product size (L x W x H)85 x 150 x 160 mm
- Net weight1184 g
- Gross weight1917 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139283
- Warranty24 months
The 300 W Akyga® AK-FL-300 ATX power supply is a device characterized by its modular construction and no fan. The absence of permanently attached cables means that the user has the ability to better organize the cables inside the computer case, which promotes optimised airflow and makes it easier to keep things tidy. In addition, the absence of a fan makes the PSU completely silent, which can be a big advantage for those who appreciate silence when working or entertaining.
The 300 W power provides a stable and uninterrupted power supply, which is sufficient for most home and office computer configurations. The power supply offers various types of connectors, making it compatible with many different components. These include a 4+4-pin PCI-E connector, often used to power graphics cards that require an additional power source. There are also four SATA connectors, designed for connecting hard drives, SSDs, or other devices based on the SATA interface. Two Molex connectors are used to power older components, such as additional fans or optical drives. The unit also includes a P8 (4+4-pin) connector for additional motherboard power supply and a main P1 (20+4-pin) power connector, compatible with both 20-pin and 24-pin inputs.
