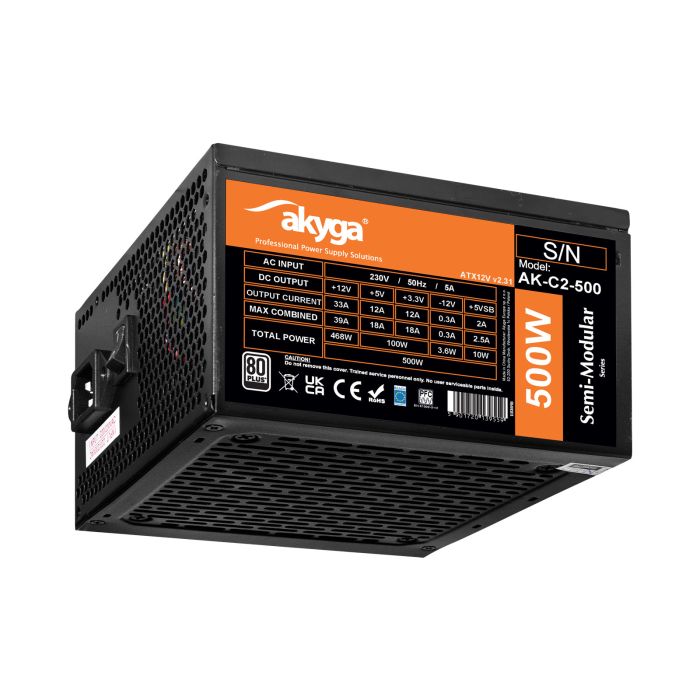

ATX Power Supply 500W Akyga AK-C2-500 Modular P4+4 2x PCI-E 6+2 pin 4x SATA 2x Molex FAN 12cm
- Product code AK-C2-500
- Product typeComputer power supply
- FormatATX 2.31
- SeriesPro Modular
- Supply voltage230 V
- Power consumption< 5 A
- Efficiency> 70 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail12 A
- Current on the +5V rail 12 A
- Maximum load on +3.3V and +5V line100 W
- Current on the +12V rail33 A
- Maximum load on 12V line468 W
- Maximum power500 W
- Mainboard Power Connector20+4-pin
- Power connector ATX12V P4None
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6 pin None
- Power connector PCI-E 6+2 pin 2 pcs
- Power connector PCI-E 8 pin None
- Molex connector2 pcs
- SATA connector4 pcs
- Modular power supplySemi-modular
- PFC filterActive
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPNone
- Power supply connectorIEC C14
- Fan size120 mm
- Fan adjustmentsAutomatic
- Cable length50 - 70 cm
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- MTBF100000 h
- Temperature5 - 50 °C
- PackageEcoBox
- Product size (L x W x H)150 x 140 x 85 mm
- Package size (L x W x H)235 x 180 x 100 mm
- Net weight1.7 kg
- Gross weight1.8 kg
- CE compatibilityYes
- FCC compatibilityNo
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139559
- Warranty24 months
The Akyga® AK-C2-500 ATX power supply from the Classic series is a semi-modular solution designed to provide stable and reliable power to PC systems. Its actual power output is 500 W, making it an ideal choice for office PCs and standard home units. What's more, the PC power supply features 80 PLUS certification compliance, meaning that the unit operates with minimal power loss. In addition, it features active PFC, which optimises the power factor, resulting in lower power consumption.
The ATX semi-modular power supply offers a wide set of connectors. The modular cables include an 8-pin (4+4-pin) connector, 2 PCI-E 6+2-pin connectors, 2 Molex plugs and 4 SATA plugs, which will allow easy connection of multiple components such as hard drives, SSD drives, graphics cards and other peripherals. The cable with 20+4-pin connector is permanently attached to the PSU, ensuring stability of the main connection to the motherboard. The modular cables are flat for easy organisation and management inside the computer case. This makes it easy to improve airflow and simplify the process of building or upgrading a system.
The AK-C2-500 computer power supply features state-of-the-art electronic components that comply with current technological standards. Carefully selected components ensure the durability and stability of the unit, which guarantees reliability during long-term and intensive use.
The casing of the semi-modular power supply is black, which perfectly matches the aesthetics of most computer cases, adding a modern and professional look. The interior of the ATX power supply features a quiet but powerful 120mm fan, which provides excellent air circulation, keeping the unit at optimum operating temperature without increasing noise levels.
The Akyga® AK-C2-500 ATX power supply is a reliable and efficient solution for demanding users looking for a stable power source for their advanced computer systems.
