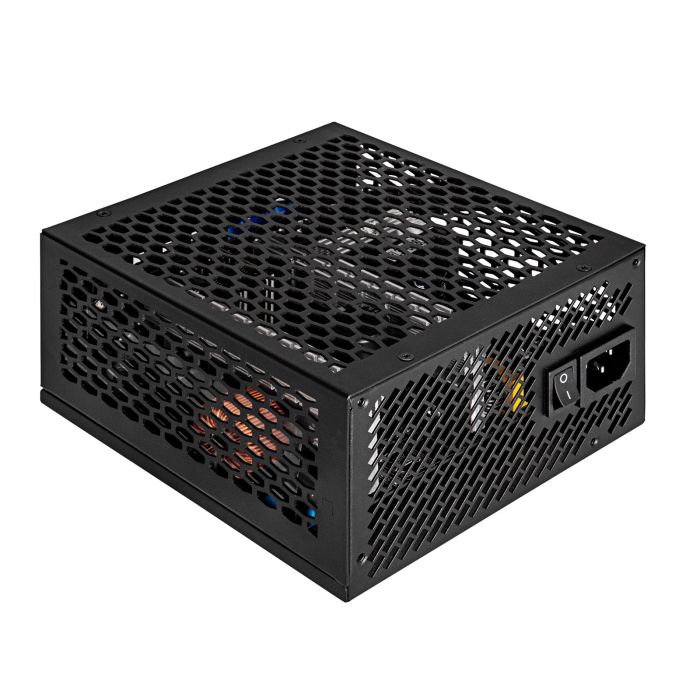

Passive ATX Power Supply 500W Akyga AK-FL-500 Full-Modular PCI-E 6+2 pin 4x SATA APFC 80+ Fanless
- Product code AK-FL-500
- Product typeComputer power supply
- FormatATX 2.31
- SeriesFanless
- Supply voltage230 V
- Power consumption5 A
- Efficiency> 80 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail18 A
- Current on the +5V rail 18 A
- Maximum load on +3.3V and +5V line75 W
- Current on the +12V rail41.7 A
- Maximum load on 12V line412 W
- Maximum power500 W
- Mainboard Power Connector24-pin
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6+2 pin 1 pc
- Molex connector2 pcs
- SATA connector4 pcs
- Modular power supplyYes
- PFC filterActive
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPYes
- Power supply connectorIEC C14
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- MTBF100000 h
- Temperature0 - 40 °C
- PackageEcoBox
- Product size (L x W x H)85 x 150 x 160 mm
- Net weight1367 g
- Gross weight1648 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139306
- Warranty24 months
The ATX power supply, Akyga® AK-FL-500, with a 500 W capacity, stands out due to its modular design. The absence of permanently attached cables offers greater flexibility in cable management within the computer case. This not only facilitates assembly but also promotes better airflow and an elegant appearance of the case interior. Therefore, it is the ideal solution for computer enthusiasts who appreciate glass cases and want to emphasise the aesthetics of the entire set-up.
Another advantage of the AK-FL-500 power supply is its fanless construction. Thanks to it, the power supply operates in complete silence, which is a big advantage over traditional ATX PSU. Thus, the user not only gains peace of mind, but also the possibility to choose his own cooling system in the computer. What's more, the power supply has a high energy efficiency that meets the 80 PLUS certification, which means efficient and economical energy consumption.
The AK-FL-500 power supply is fully modular. Its cables include:
- P1 (20+4-pin) for connecting the motherboard,
- P8 (4+4-pin) for additional CPU power supply,
- PCI-e 4+4-pin for graphics cards,
- 4 SATA connectors for HDD/SSD,
- and 2 Molex connectors for older components.
