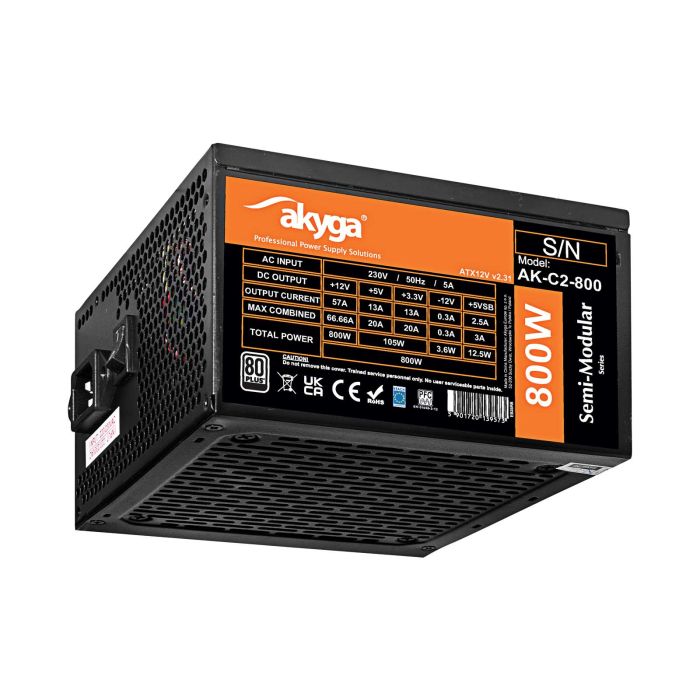

ATX Power Supply 800W Akyga AK-C2-800 Modular P4+4 2x PCI-E 6+2 pin 6x SATA 3x Molex FAN 12cm
- Product code AK-C2-800
- Product typeComputer power supply
- FormatATX 2.31
- SeriesPro Modular
- Supply voltage230 V
- Power consumption< 5 A
- Efficiency> 70 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail13 A
- Current on the +5V rail 13 A
- Maximum load on +3.3V and +5V line105 W
- Current on the +12V rail57 A
- Maximum load on 12V line800 W
- Maximum power800 W
- Mainboard Power Connector20+4-pin
- Power connector ATX12V P4None
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6 pin None
- Power connector PCI-E 6+2 pin 4 pcs
- Power connector PCI-E 8 pin None
- Molex connector3 pcs
- SATA connector6 pcs
- Modular power supplySemi-modular
- PFC filterActive
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPNone
- Power supply connectorIEC C14
- Fan size120 mm
- Fan adjustmentsAutomatic
- Cable length50 - 80 cm
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- MTBF100000 h
- Temperature5 - 50 °C
- PackageEcoBox
- Product size (L x W x H)150 x 145 x 85 mm
- Package size (L x W x H)235 x 180 x 100 mm
- Net weight1.7 kg
- Gross weight1.82 kg
- CE compatibilityYes
- FCC compatibilityNo
- RoHS compatibilityYes
- REACH compatibilityYes
- Included accessoriesPower cable
- EAN code5901720139573
- Warranty24 months
The Akyga® AK-C2-800 ATX power supply from the Classic series is an excellent choice for those seeking stable and reliable power for their PC systems. This semi-modular ATX power supply delivers 800 W, making it ideal for both office PCs and home workstations. Thanks to its compliance with the 80 PLUS certification, it operates efficiently, reducing power losses and supporting eco-friendly use. Additionally, the active PFC optimises the power factor, reducing energy consumption.
Rich set of connectors
The Akyga® AK-C2-800 ATX power supply is equipped with a variety of connectors that allow flexible connection of multiple components. Modular connectors include:
- One 8-pin (4+4-pin) connector
- Four PCI-E 6+2-pin connectors
- Three Molex plugs
- Six SATA plugs
A fixed 20+4-pin connector guarantees a stable connection to the motherboard. The modular cables, ranging from 50 to 80 cm in length, are flat, facilitating cable management inside the case, improving airflow, and simplifying the installation process.
High-Quality Components
One of the key strengths of the AK-C2-800 power supply is the use of cutting-edge electronic components that meet current technological standards. Carefully selected components ensure the durability and stability, guaranteeing reliability during intensive use.
Elegant Design and Efficient Cooling
The semi-modular power supply comes in a sleek black casing that complements most computer cases, providing a modern and professional look. Inside, a quiet 120mm fan ensures effective airflow, maintaining optimal operating temperatures without increasing noise levels.
Reliable Power Source
The Akyga® AK-C2-800 ATX power supply is a reliable and efficient solution for demanding users looking for a stable power source for their advanced computer systems. Choose this semi-modular power supply to ensure your computer receives the highest quality and reliability.
