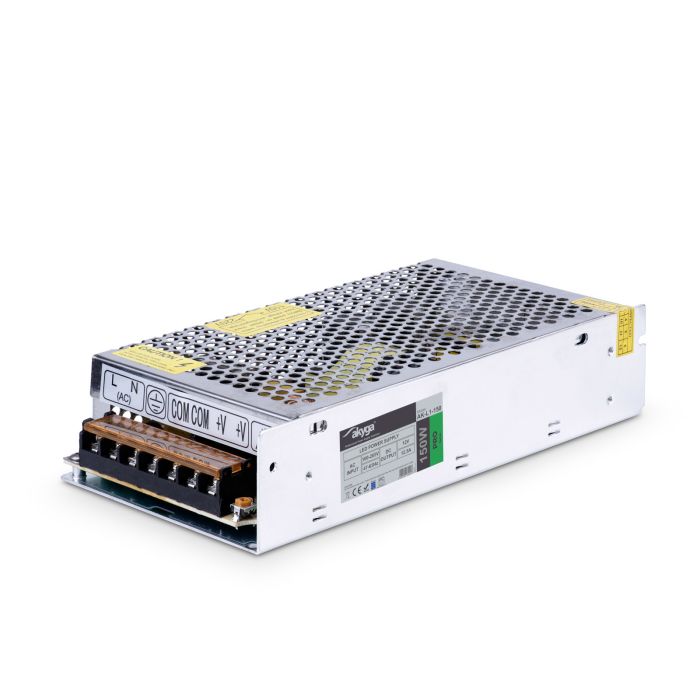

Impulsive LED power supply Akyga AK-L1-150 12V / 12.5A 150W
- Product code AK-L1-150
- Product typeLED power supply
- SeriesPro
- Supply voltage100-265 V
- Mechanical switchNone
- IP RatingIP20
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- Power supply connectorScrew
- Temperature5 - 50 °C
- PackageCarton box
- Product size (L x W x H)199x97x42 mm
- Package size (L x W x H)202x103x42 mm
- Net weight439 g
- Gross weight473 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720135018
- Warranty24 months
The Akyga® AK-L1-150 is a 150W power supply for industrial automation systems, machine control and lighting based on LED technology, which is used in powering LED strips, LED bulbs, LED panels, RGB LED drivers and other electronic equipment powered with 11 - 15V DC, which is regulated by a potentiometr. The current capacity of 12.5A allows to supply for example a 31m LED strip with parameters 4.8 W/m. There is a possibility to power two different circuit in one time.
In order to properly match the power supply with the LED strip, multiply the length of the strip expressed in meters by the power of the tape, and then select the power supply with a margin of min. 10% to guarantee long and trouble-free system operation, unless the manufacurer of the LED strip recommends otherwise.
