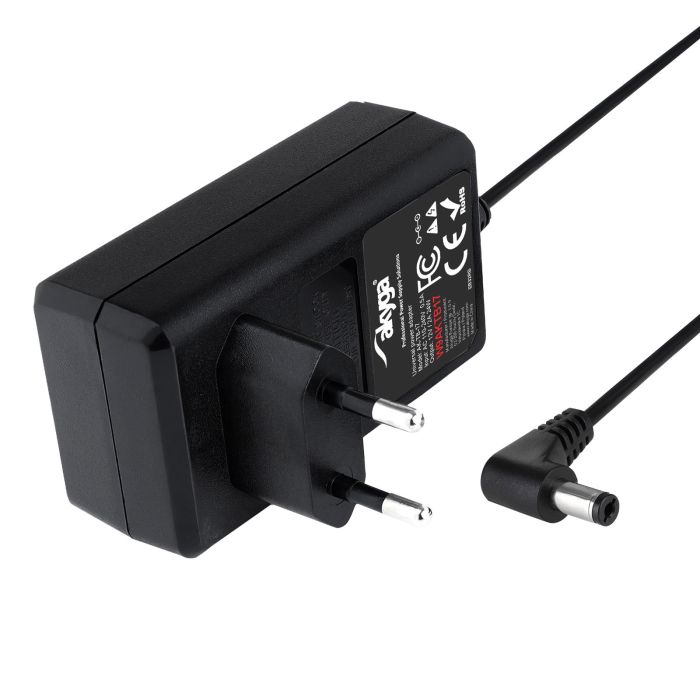

Universal power adapter Akyga AK-TB-17 12V / 2A 24W 5.5 x 2.1 mm 1.4m
Usefull materials
- Product code AK-TB-17
- Product typeAC/DC adapter
- SeriesUniversal
- Supply voltage110-240 V
- Power consumption< 1.5 A
- Output voltage12 V
- Output amperage2 A
- Maximum power24 W
- Mechanical switchNone
- Ground wireNone (II protection class)
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- Power supply connector5.5 x 2.1 mm
- Pin Length10 mm
- Cable length1.4 m
- MaterialABS
- Product colorBlack
- MTBF100000 h
- Temperature5 - 50 °C
- PackageEcoBox
- Product size (L x W x H)90 x 70 x 46 mm
- Package size (L x W x H)135 x 85 x 50 mm
- Net weight108 g
- Gross weight143 g
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720137890
- Warranty24 months
Description
Akyga® AK-TB-17 is a compact power supply unit with 12 V and 24 W output power. It is ideal for powering devices with low power consumption, such as peripherals, monitoring or LED lighting. What's more, the power supply is equipped with a 5.5 x 2.1 mm connector, which can be found in industrial cameras, CCTV systems, routers or LED strips, among others.
