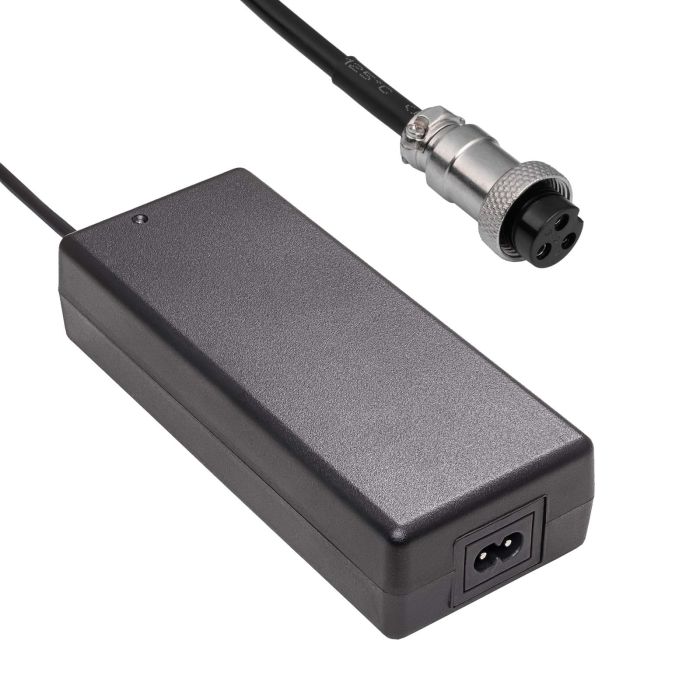

Electric Vehicle Charger Akyga AK-EV-23 84V / 2A 126W GX16 12mm Female 1.2m
- Product code AK-EV-23
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typeAC/DC adapter
- Supply voltage100-240 V
- Power consumption< 2.5 A
- Efficiency> 80 %
- Output voltage84 V
- Output amperage2 A
- Outlet cord length1.2 m
- Output connectorGX16 12 mm (f)
- Pin Length10 mm
- Maximum power168 W
- Power inlet IEC C8
- Mechanical switchNone
- Ground wireNone (II protection class)
- IP RatingIP20
- OVPYes
- OCPYes
- OPPYes
- SCP Yes
- Ferrite filterNone
- Power cable included None
- MaterialABS
- Product colorBlack
- Backlight colorBicolor diode
- DisplayNone
- MTBF10000 h
- PackageEcoBox
- Package size (L x W x H)190 x 92 x 38 mm
- Net weight521 g
- Gross weight624 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5906708750504
- Warranty24 months
Akyga® AK-EV-23 is a professional electric bike charger designed for users whose original charger has broken down or who need an additional power source at work. The device offers a voltage of 84 V and a current of 2 A, which translates into a power of 168 W – ideal for fast and efficient charging of lithium-ion batteries in a 20S (72 V) configuration.
Universal GX16 3-Pin Connector
The charger is equipped with the popular GX16 3-pin (12 mm) connector, which guarantees a stable connection to the battery and full compatibility with a wide range of electric bikes, scooters, and other e-mobility vehicles.
Safety First
Thanks to advanced safety features – OVP (overvoltage protection), OCP (overcurrent protection), SCP (short-circuit protection) and OTP (overheating protection) – the AK-EV-23 electric bike charger protects both the battery and the user. You can be sure that the charging process will be completely safe even during prolonged use.
Compact and Durable Design
The charger's housing is made of durable, heat-resistant materials. Thanks to its compact size, it fits easily into a bag or backpack, making it an excellent choice for both home use and travel.
