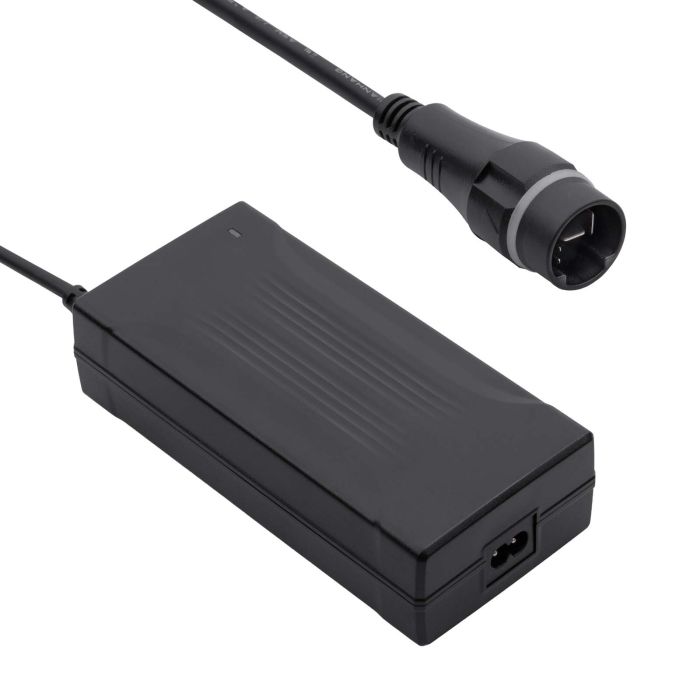

Electric Vehicle Charger Akyga AK-EV-26 42V / 4A 168W Yamaha 1.2m
- Product code AK-EV-26
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typeAC/DC adapter
- Supply voltage100-240 V
- Power consumption< 1.1 A
- Efficiency> 80 %
- Output voltage42 V
- Output amperage4 A
- Outlet cord length1.2 m
- Output connectorYamaha PASC9
- Maximum power168 W
- Power inlet IEC C8
- Mechanical switchNone
- Ground wireNone (II protection class)
- IP RatingIP20
- OVPYes
- OCPYes
- OPPYes
- SCP Yes
- Ferrite filterNone
- Power cable included None
- MaterialABS
- Product colorBlack
- DisplayNone
- MTBF10000 h
- PackageEcoBox
- Package size (L x W x H)220 x 120 x 55 mm
- Net weight783 g
- Gross weight850 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5906708751129
- Warranty24 months
Yamaha Intube 500Wh e-bike charger
The Akyga® AK-EV-26 is a charger for electric bikes fitted with a Yamaha Intube 500Wh battery. It is a practical replacement for the PASC9 and X1R-82107-10 / X1R 82107 chargers. It is a good choice for Yamaha e-bike users looking for a reliable and convenient solution for everyday charging.
Replacement for the Yamaha PASC9 and X1R 82107 chargers
The AK-EV-26 charger has specifications of 42V / 4A (168W), which corresponds to the charging standard for 36V batteries used in many Yamaha bikes. Thanks to its 4 A current, the charger strikes a good balance between charging speed and battery life. This is particularly important for lithium-ion batteries, which are best maintained within a charge range of approximately 20% to 80%.
The charger is compatible with Yamaha Intube batteries, including the Yamaha Intube 500Wh battery. It may also be suitable for selected Yamaha, Haibike and Winora bikes, as well as other e-bikes using a Yamaha-compatible power system. Before purchasing, it is worth checking the model number of your old charger, the voltage and the type of battery connector.
Convenient charging at home, in the garage and at the service centre
The Akyga® AK-EV-26 features a 1.2 m cable, ensuring ease of use when connecting the battery for charging. The set also includes an 8-pin power cable, so the charger is ready for use straight out of the box. This is a practical solution for both home use and for service centres servicing Yamaha e-bikes.
How to choose a charger for your Yamaha e-bike?
When choosing a charger for your Yamaha e-bike, you should first and foremost check that the voltage, current and plug type are compatible with your battery. The Akyga® AK-EV-26 model is equipped with protection against overvoltage, overload, overheating and short circuits, ensuring safe charging of the Yamaha Intube 500Wh battery. A correctly selected charger protects the battery from damage and helps maintain its performance during everyday use.
