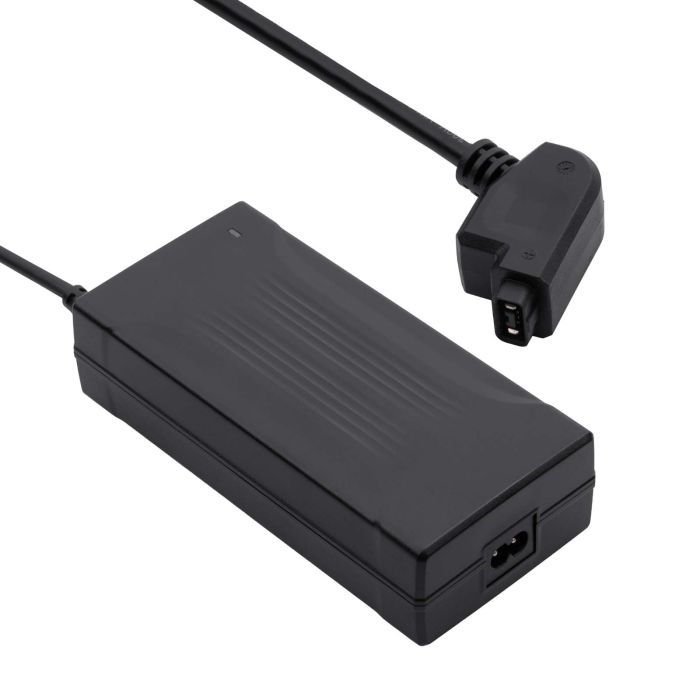

Electric Vehicle Charger Akyga AK-EV-27 42V / 4A 168W Shimano 1.2m
- Product code AK-EV-27
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typeAC/DC adapter
- Supply voltage100-240 V
- Power consumption< 1.1 A
- Efficiency> 80 %
- Output voltage42 V
- Output amperage4 A
- Outlet cord length1.2 m
- Maximum power168 W
- Power inlet IEC C8
- Mechanical switchNone
- Ground wireNone (II protection class)
- IP RatingIP20
- OVPYes
- OCPYes
- OPPYes
- SCP Yes
- Ferrite filterNone
- Power cable included None
- MaterialABS
- Product colorBlack
- DisplayNone
- MTBF10000 h
- PackageEcoBox
- Product size (L x W x H)205 x 110 x 45 mm
- Package size (L x W x H)220 x 120 x 55 mm
- Net weight801 g
- Gross weight873 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5906708751136
- Warranty24 months
Replacement charger for the Shimano Steps EC-E8004
The Akyga® AK-EV-27 is a Shimano charger designed for e-bikes with a Shimano Steps battery or drive system. It serves as a practical replacement for the Shimano Steps EC-E8004 charger, particularly if the original charger has been lost or damaged, or if you need a second one for home, work or the garage. The model offers 42 V / 4 A specifications, a 1.2 m cable and a mains lead included in the set, so it is ready for everyday use as soon as it is plugged in.
Convenient charging of Shimano batteries
The device has been tailored to the requirements of the batteries used in Shimano e-bikes. The correct charging voltage and 4 A current enable efficient recharging without straining the cells. This solution works well in everyday use – for both quick top-ups and full charging cycles. Choosing the right charger for your e-bike is important for the longevity of the batteries, so it’s worth opting for models compatible with your specific system.
Compatibility with the Shimano Steps system
The Akyga® AK-EV-27 is compatible with selected Shimano Steps batteries, such as the BT E8035, BT E8020, BT E8014, BT E8010, BT E6010, BT E6001 and BT E6000. It supports batteries of various capacities, including 504Wh and 630Wh, and can therefore be used with a wide range of Shimano bike configurations. Charging time depends on the battery’s capacity and discharge level. However, the specifications ensure a good balance between speed and safety during the charging process.
Safe and convenient use
The Akyga® charger for Shimano Steps is equipped with features that support safe battery charging. Stable operating parameters help protect the battery from overcharging, overheating and abnormal current flow, which is crucial for the lifespan of lithium-ion cells. As a result, the charging process is controlled and predictable, regardless of everyday usage conditions. This makes the charger a reliable replacement that you can trust for regular bike charging.
A tried-and-tested replacement for Shimano bikes
The Akyga® brand offers the AK-EV-27 model as a functional alternative to the original EC-E8004 charger. This is the solution for those looking for a compatible and convenient charger for their Shimano Steps bike. Thanks to its carefully selected specifications and simple operation, the charger allows you to maintain your battery’s charge effortlessly and keep your bike ready to ride every day.
