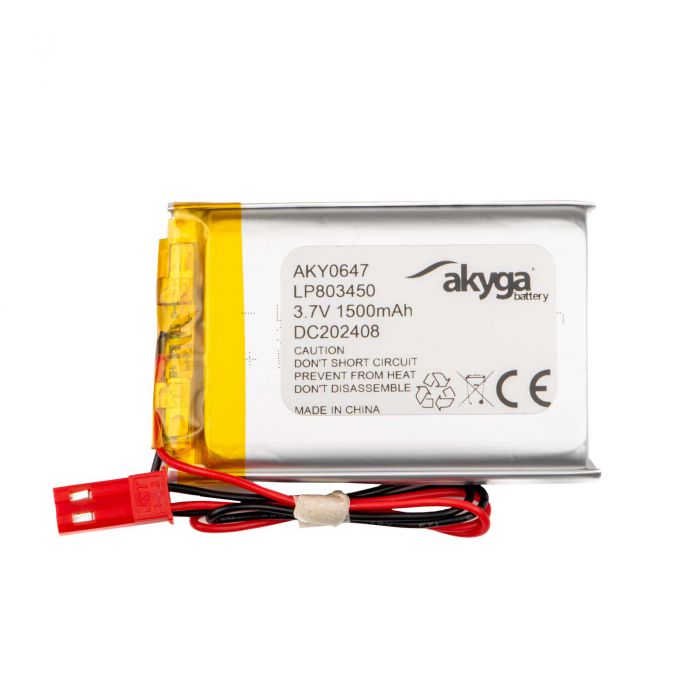

Lithium Polymer Battery Akyga AKY0647 LP803450 Li-Po 3.7V/1500mAh PCM JST 2.54 2-Pin Connector 150mm

  • Product code AKY0647
  • Part numberLP803450
  • Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
  • Product typePolymer Li-Ion Battery
  • Rated voltage3.7 V
  • Battery capacity1500 mAh
  • ProtectionPCM
  • Leads wires, connector+socket
  • Thickness8 mm
  • Width34 mm
  • Height50 mm
  • Connector type2,54 JST, 2 pins
  • Connector part numberJST SYP-02T-1
  • Cable length150 mm
  • PackageUniBag
  • Product size (L x W x H)50 x 34 x 8 mm
  • Net weight28 g
  • CE compatibilityYes
  • RoHS compatibilityYes
  • MSDS compatibilityYes
  • EAN code5906574243575
  • Warranty24 months
Description

AKY0647 lithium polymer battery is a high-efficiency energy source. A PCM protection has been built-in from which two 150mm long cables come out, 2.54 JST connector, 2 pins. It has a capacity of 1500mAh with a nominal voltage of 3.7V. The PCM protection used protects the battery against overcharging, excessive discharge and short circuit

The battery is compliant with the following certificates: RoHS, MSDS, CE.

Inappropriate use of the battery can damage them.
