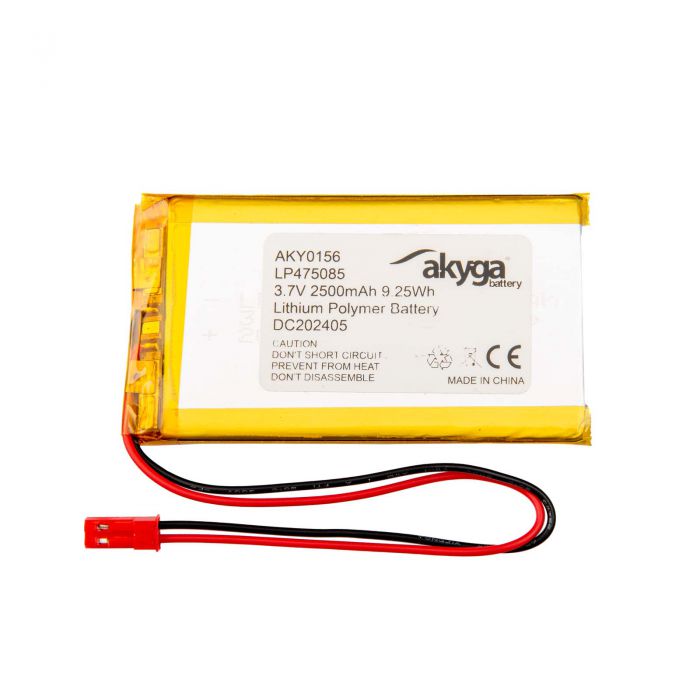

Lithium Polymer Battery Akyga AKY0156 LP475085 Li-Po 3.7V/2500mAh PCM JST 2.54 2-Pin Connector 150mm
- Product code AKY0156
- Part numberLP475085
- Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typePolymer Li-Ion Battery
- Rated voltage3.7 V
- Battery capacity2500 mAh
- ProtectionPCM
- Leads wires, connector+socket
- Thickness4.7 mm
- Width50 mm
- Height85,0 mm
- Connector type2,54 JST, 2 pins
- Connector part numberJST SYP-02T-1
- Cable length150 mm
- PackageUniBag
- Product size (L x W x H)85 x 50 x 4.7 mm
- Net weight44 g
- CE compatibilityYes
- RoHS compatibilityYes
- MSDS compatibilityYes
- EAN code5906574243629
- Warranty24 months
AKY0156 Li-Po batteries with protection are an advanced power source for a wide range of applications. They have a capacity of 2500 mAh and a nominal voltage of 3.7 V. The technology used allows for obtaining a small battery size, without limiting the freedom to choose the capacity. That is why lithium-polymer batteries from Akyga are ideally suited to power all kinds of portable devices of various sizes and shapes. In addition, the PCM protection used protects the batteries against overcharging, excessive discharge and short circuit, and the 150 mm long cables attached to it, terminated with a JST 2 pin connector, facilitate installation.
They have certificates: CE, RoHS, MSDS.
Before installation, familiarize yourself with the rules of using lithium polymer batteries. Incorrect use may lead to their damage.
