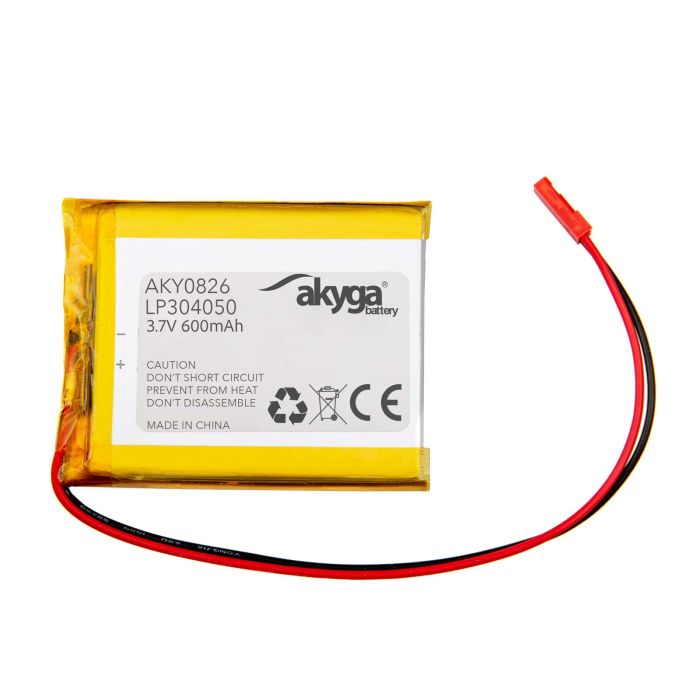

Lithium Polymer Battery Akyga AKY0826 LP304050 Li-Po 3.7V / 600mAh PCM JST 2.54 2Pin Connector 150mm
- Product code AKY0826
- Part numberLP304050
- Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typePolymer Li-Ion Battery
- Rated voltage3.7 V
- Battery capacity600 mAh
- Cell TypeLi-Po
- ProtectionPCM
- Leads wires, connector+socket
- Thickness3 mm
- Width40 mm
- Height50 mm
- Connector type2,54 JST, 2 pins
- Connector part numberJST SYP-02T-1
- Cable length150 mm
- PackageUniBag
- Product size (L x W x H)40 x 50 x 3 mm
- Net weight14 g
- CE compatibilityYes
- RoHS compatibilityYes
- MSDS compatibilityYes
- EAN code5903622760527
- Warranty24 months
The Akyga® AKY0826 LP304050 Li-Po battery is a compact and high-performance solution for modern electronics. It has been designed to provide a stable power supply for devices requiring small yet high-capacity cells.
High-performance LP304050 battery
The LP304050 lithium-polymer cell from Akyga® Battery ensures high performance and a long service life. The battery offers a nominal voltage of 3.7 V and a capacity of 600 mAh, making it a versatile power source for many applications. Cells of this type are valued for their ability to achieve high capacity whilst maintaining a compact size.
The AKY0826 battery is equipped with a PCM module that protects the cells against overcharging, over-discharging and short-circuiting. This ensures the battery operates safely even in demanding conditions.
Compact dimensions and low weight
Its small dimensions make the battery ideal for mobile devices. Its design allows it to fit easily into the equipment housing. The standard dimensions of this type of battery are approximately 40 × 50 × 3 mm, and it weighs just over ten grams, which facilitates integration with electronics.
Wires and JST connector – quick connection
The Akyga® AKY0826 battery is fitted with 150 mm leads terminated with a popular 2-pin JST connector. This solution allows for quick and convenient connection of the battery to the device without the need for soldering. The JST connector is frequently used in electronic designs, which enhances compatibility.
The leads ensure a stable connection, and their length allows for greater flexibility during installation.
Applications and capabilities
The LP304050 battery is used in a wide range of devices, such as:
- consumer electronics
- smart devices
- toys and models
- DIY projects
Thanks to its design, the battery can operate across a wide temperature range, and its lifespan is up to several hundred charge cycles.
Available battery types
Lithium-polymer batteries come in many variants, making them easy to adapt to specific applications. In addition to the LP304050 model, other cells with similar specifications are also available. This means the battery can be used both as a replacement for standard batteries and as a component in new electronic projects.
