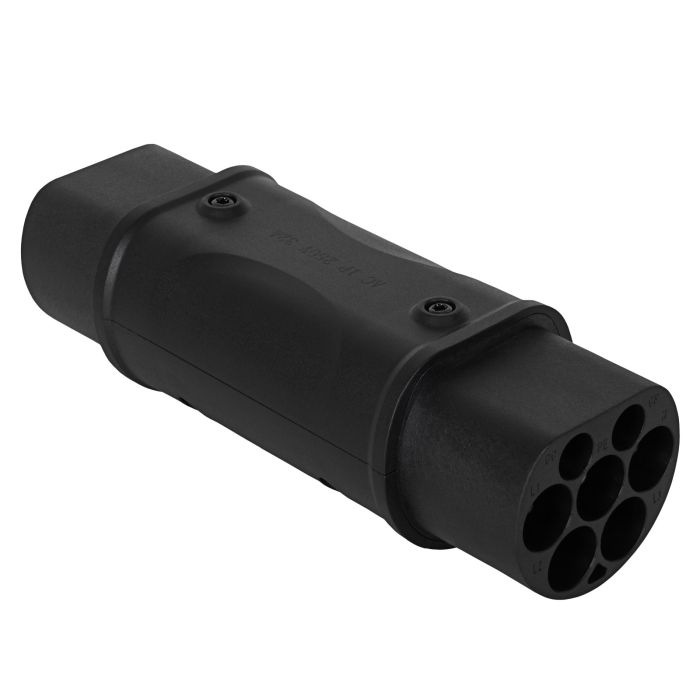

Adapter for electric cars Akyga AK-SC-E10 Type2 GB/T 1phase 32A
Usefull materials
- Product code AK-SC-E10
- Supply voltage250 V
- Maximum current32 A
- Connector resistance0.5 mΩ
- Maximum power8 kW
- Flame resistanceUL94V-0
- IP RatingIP54 / IP55
- The cable plug #1Type 2 (IEC 62196-2) Male Connector
- The cable plug #2GB/T (20234.2-2015) Male Connector
- Plated plugsSilver
- MaterialTPE
- Product colorBlack
- Temperature-30 / +55 °C
- PackageCarton box
- Product size (L x W x H)71 x 71 x 176 mm
- Package size (L x W x H)75 x 75 x 190 mm
- Net weight471 g
- Gross weight512 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720137845
- Warranty24 months
Description
The Akyga® AK-SC-E10 is a handy adapter for charging electric vehicles imported from China. On one side is the Type 2 socket found on most EV charging stations. On the other is the GB/T connector, which is used in Chinese electric cars. These can be found on BYD cars, among others. Thanks to the adapter, you will be able to charge your Chinese EV without any problems using a charger with a Type 2 plug. What is more, the adapter is made of carefully selected materials which guarantee safety and reliability during charging.
