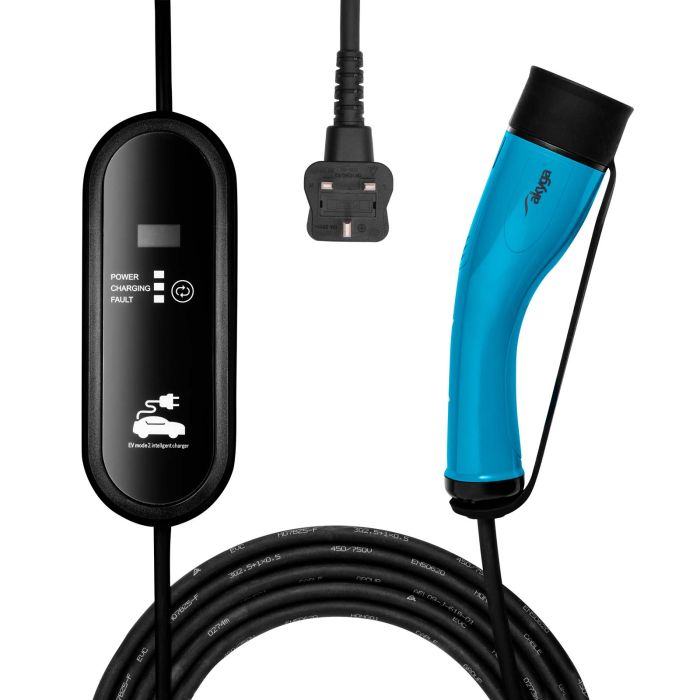

Charger for Electric Cars Akyga AK-EC-20 Type2 LCD 1-phase 16A 3.8kW 5m UK
- Product code AK-EC-20
- Product typeElectric Car Accessory
- Hole for padlockNo
- Supply voltage110-250 V / 50/60 Hz
- Number of phases1 phase
- Maximum current13 A
- Maximum power3 kW
- Ground wireYes
- Flame resistanceUL94V-0
- IP RatingIP54
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- Cable length5 m
- The cable plug #1Type G
- The cable plug #2Type 2 (IEC 62196-2) Female Connector
- Plated plugsSilver
- Cable materialCopper
- Wire gauge3 x 2.5 mm2 + 1 x 0.5 mm2
- Isolation materialTPE
- MaterialABS
- Product colorBlue
- DisplayYes
- MTBF10000 h
- Temperature-30 / +50 °C
- PackageEcoBox
- Product size (L x W x H)390 x 390 x 90 mm
- Package size (L x W x H)430 x 400 x 100 mm
- Net weight1.82 kg
- Gross weight2.4 kg
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- Included accessoriesProtective bag
- EAN code5901720139467
- Warranty24 months
The Akyga® AK-EC-20 is a UK electric car charger, designed for vehicles located in the UK and Ireland. It is equipped with a BS 1363 (G) plug, also known as the British plug, making it fully compatible with the electrical systems in these countries.
The AK-EC-20 EV charger features the popular IEC 62196-2 Type 2 connector, commonly known as Mennekes. This is the most widely used EV charging standard on the European market. As a result, it is compatible with almost every available electric vehicle. In addition, the comfort of use is ensured by the 5-metre cable, which allows easy connection to a power source.
The heart of the charger is the ControlBox, which provides information about the current charging status and shows important data on the LCD display, such as charging current, voltage, energy consumption, device temperature and charging time. The device provides adjustable charging current, with options to choose from 8 A, 10 A and 13 A, enabling customization to the electrical installation's capabilities and the vehicle's specifications.
The AK-EC-20 charger is designed for efficient operation even in challenging conditions, as confirmed by its IP54 rating. Its robust construction ensures protection against contaminants and moisture, which is crucial for safety and long-term use.
Built-in protection systems such as OVP, OCP, OPP, OTP, and SCP offer comprehensive protection for both the charger and the charged vehicle, safeguarding against excessive current, voltage, power overload, overheating, and short-circuiting. An elegant bag included in the set also facilitates the charger's transport and storage, valued by users who prioritize mobility and convenience.
