Charging Station for Electric Cars Wallbox Akyga AK-EC-21 Type2 3-phases 16A 11kW 5m
- Product code AK-EC-21
- Product typeElectric Car Accessory
- Supply voltage380-440 V / 50/60 Hz
- Number of phases3 phase
- Maximum current16 A
- Maximum power11 kW
- Ground wireYes
- Flame resistanceUL94V-0
- IP RatingIP54
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- Power supply connectorType 2 (IEC 62196-2) Female Connector
- Cable length5 m + 0.75 m
- Cable materialCopper
- MaterialABS
- Product colorWhite
- MTBF10000 h
- Temperature-35 / +50 °C
- PackageCarton box
- Product size (L x W x H)90 x 180 x 180 mm
- Package size (L x W x H)235 x 275 x 405 mm
- Net weight3180 g
- Gross weight3975 g
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139474
- Warranty24 months

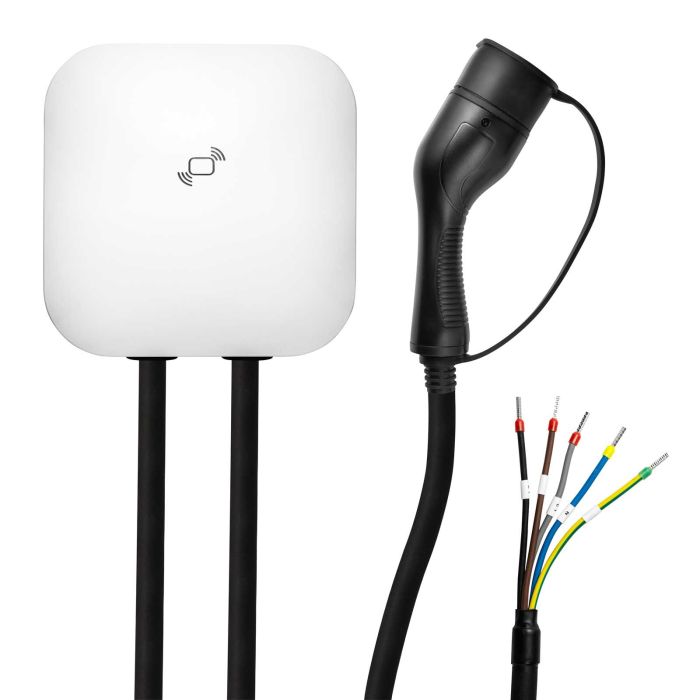

The Akyga® AK-EC-21 electric car charging station is a device that enables fast charging using a three-phase power. The integrated Type 2 connector (IEC 62196-2) allows for a maximum current of 16 A, which translates into a charging power of up to 11 kW. The charging station, also known as the Wallbox, is compatible with a wide range of electric vehicles, providing flexibility and convenience.
With maximum user convenience in mind, the charging station is equipped with a 5-metre cable, providing plenty of freedom when charging and allowing the vehicle to be placed at a suitable distance from the station. Two RFID cards are included to guarantee secure use by controlling access to the charger. In addition, the Wallbox offers a practical wall-hanging bracket, making mounting the device simple and space-saving.
The AK-EC-21 electric car charging station has specially prepared cables for connection to the electrical installation, which makes it easy to install and quickly start up the charging station. What's more, the Wallbox is the ideal choice for those looking for an efficient and easy-to-use solution for charging electric cars at home.
