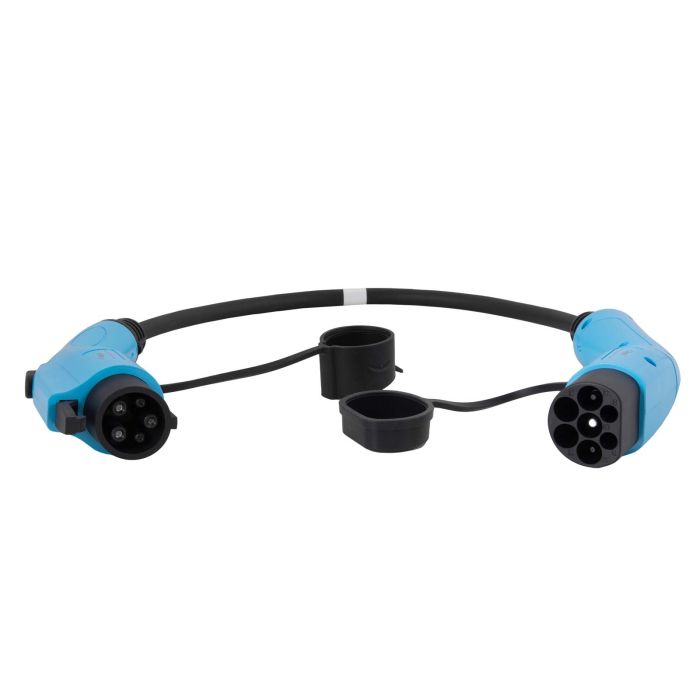

Adapter for electric cars Akyga AK-EC-10 Type2 / Type1 1-phase 32A 7.2kW 0.5m
- Product code AK-EC-10
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typeElectric Car Accessory
- Hole for padlockNo
- Supply voltage110-250 V / 50/60 Hz
- Number of phases1 phase
- Maximum current32 A
- Maximum power7.2 kW
- Flame resistanceUL94V-0
- IP RatingIP54
- Cable length0.5 m
- The cable plug #1Type 1 (J1772) Female Connector
- The cable plug #2Type 2 (IEC 62196-2) Male Connector
- Cable materialCopper
- Wire gauge3 x 6 mm2 + 2 x 0.5 mm2
- Isolation materialTPE
- MaterialABS
- Temperature-30 / +50 °C
- PackageProtective bag
- Product size (L x W x H)800 x 150 x 85 mm
- Package size (L x W x H)380 x 380 x 100 mm
- Net weight0.91 kg
- Gross weight1.25 kg
- CE compatibilityYes
- FCC compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- Included accessoriesAK-AC-02
- EAN code5901720136824
- Warranty24 months
Akyga® AK-EC-10 adapter is used to convert a European Type 2 connector to an American Type 1 connector. It is a handy 0.5 m cable which will save many situations. Cars charging via Type 1 socket are becoming less popular in Europe, so this connector is not always available on public charging stations. In this situation, the Type 2 - Type 1 adapter will allow you to charge your car using a standard Type 2 connector (IEC 62196-2). This will allow the owner of a car imported from overseas to take advantage of most EVSE charging points. What is more, the adapter supports fast charging with a current of 32 A, which is due to thick copper wires and durable plugs.
The product will prove useful in charging batteries of electric cars such as: Nissan Leaf, Nissan NV200 SE VAN, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Peugeot iOn, Peugeot Galicia, Opel Ampera, Chevrolet Volt, Smiths Edison VAN, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Mistubishi I-Miev, Mitsubishi Outlander PHEV, Mia Electric Van, Mia Electric Car, Kia Soul.
