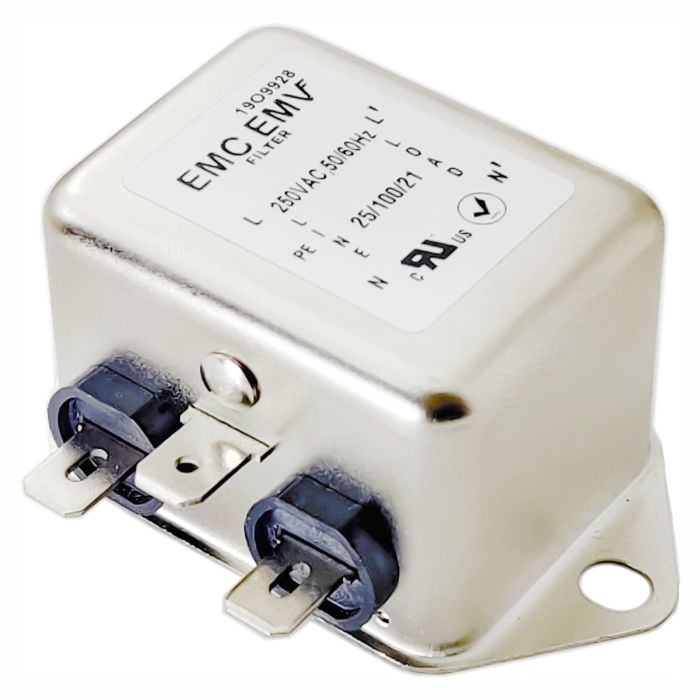

Single phase EMI filter Akyga EMC EMV EN2020-1-F 1A 120-250VAC 50/60Hz
- Product code EN2020-1-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current1 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)61 x 56 x 29 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138514
Description
The EN2020-1-F EMI filter is an unobtrusive but vital protection for sensitive electronics. Thanks to its low maximum operating current (1 A), it is ideal for precision applications such as laboratory equipment, control systems or modern measurement equipment. Its purpose is one - to effectively eliminate electromagnetic interference that can disrupt sensitive components.
Equipped with 6.3 mm connectors, the EN2020-1-F EMI interference filter enables quick installation and integration into equipment, while the robust metal housing guarantees durability and resistance to harsh environments. It is a filter that - despite its compact size - plays a key role in ensuring the purity of the power supply.
