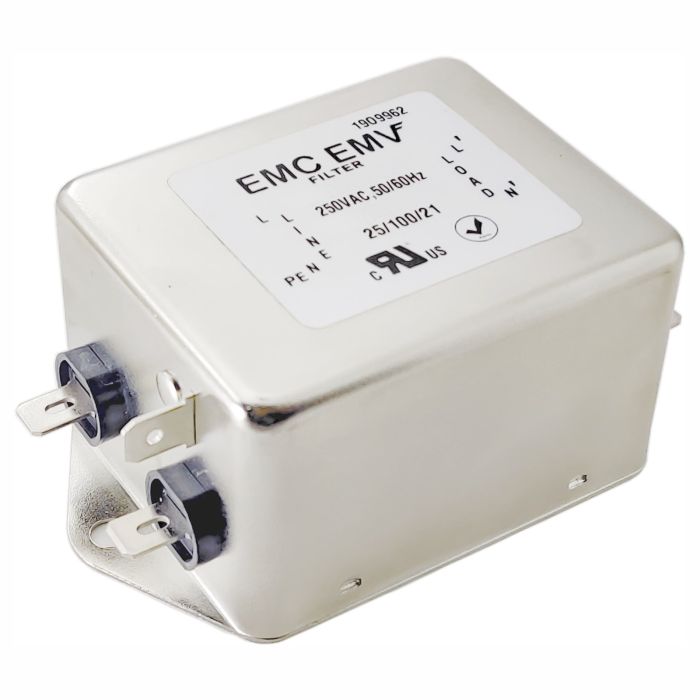

Single phase EMI filter Akyga EMC EMV EN2080-10-F 10A 120-250VAC 50/60Hz
- Product code EN2080-10-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current10 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)155 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138903
Description
The EN2080-10-F EMI filter is a reliable component for the protection of electronic devices with medium power consumption against electromagnetic interference. With a maximum operating current of up to 10 A, it is ideal for automation systems, industrial installations and power supplies where voltage stability and purity are crucial.
The 6.3 mm connectors allow for fast, secure installation, and the filter's metal housing guarantees durability and effective shielding against external interference. The EN2080-10-F interference filter combines high performance, reliability and robustness - the ideal solution for demanding applications.
