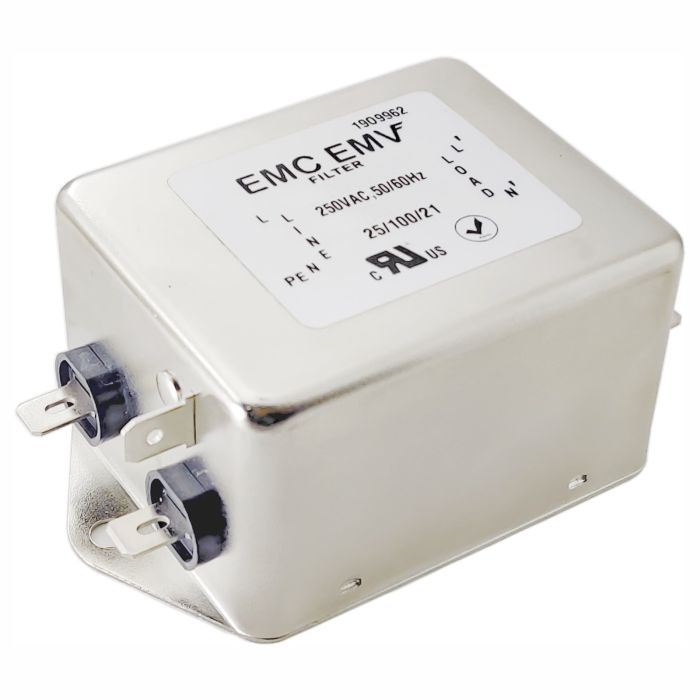

Single phase EMI filter Akyga EMC EMV EN2070-10-F 10A 120-250VAC 50/60Hz
- Product code EN2070-10-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current10 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)155 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138811
Description
The EN2070-10-F EMI filter is a reliable solution designed to protect electronic equipment from electromagnetic interference when operating at up to 10 A. It is ideal for automation systems, lighting installations and power systems where voltage stability has a direct impact on operational reliability.
The 6.3 mm type connectors facilitate quick installation, while the metal housing ensures durability and effective shielding of external interference. The EN2070-10-F interference filter combines high filtering efficiency, compact design and robust construction - an excellent choice for professional and industrial applications.
