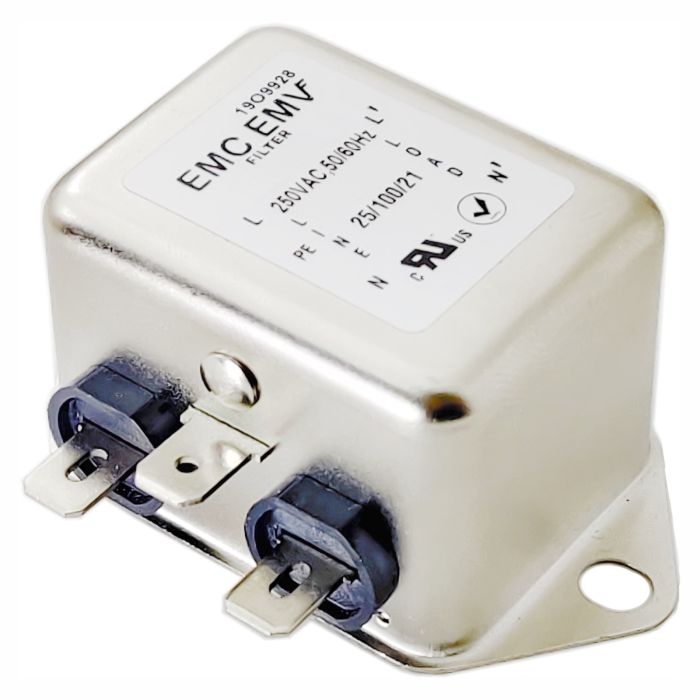

Single phase EMI filter Akyga EMC EMV EN2090-6-F 6A 120-250VAC 50/60Hz
- Product code EN2090-6-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current6 A
- Leads6.3 mm connectors
- Leakage current0.39mA @120 VAC 60 Hz, 0.68mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)86 x 52 x 29 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138989
Description
The EN2090-6-F EMI filter is an effective way to protect electronic equipment from electromagnetic interference when operating at up to 6 A. It is ideal for automation systems, measuring devices, lighting installations and modern power supply systems where voltage purity is critical to operational reliability.
Fitted with convenient 6.3mm connectors, it provides fast and secure installation. The robust metal housing effectively shields interference and the low leakage current guarantees safe and stable operation even in demanding conditions. The EN2090-6-F interference filter stands for reliability and precision in a compact form.
