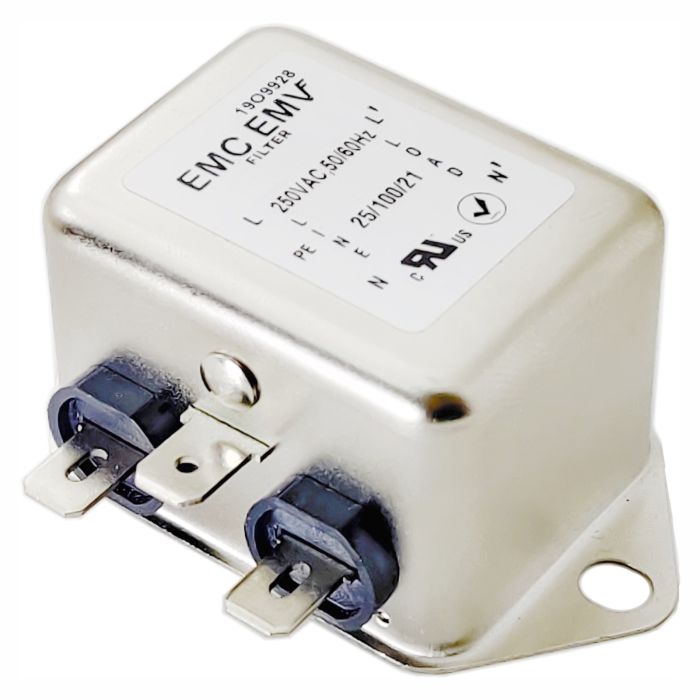

Single phase EMI filter Akyga EMC EMV EN2020-6-F 6A 120-250VAC 50/60Hz
- Product code EN2020-6-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current6 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)61 x 56 x 29 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138538
Description
The EN2020-6-F EMI filter is a reliable solution for devices with medium power consumption, where the purity of the power signal has a direct impact on the quality of operation. Adapted to handle currents up to 6 A, it represents an excellent compromise between power and operational precision. It is ideal for applications requiring effective noise filtering.
The 6.3 mm type connectors ensure quick installation and the durable metal housing protects the components even in less favourable environmental conditions. The EN2020-6-F is an EMI interference filter that combines functionality, robustness and reliability for everyday use.
