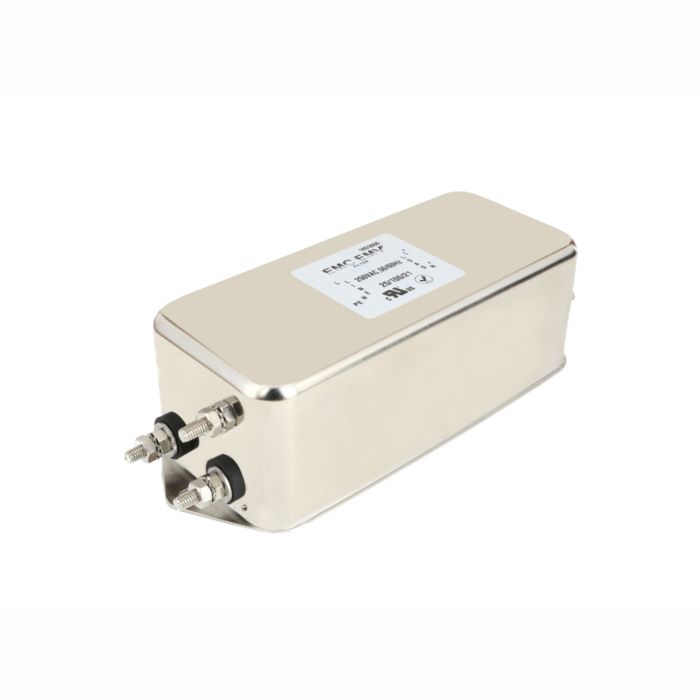

Single phase EMI filter Akyga EMC EMV EN2070-36-S 36A 120-250VAC 50/60Hz
- Product code EN2070-36-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current36 A
- LeadsM4 connectors
- Leakage current0.90mA @120 VAC 60 Hz, 1.57mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)162 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138866
Description
The EN2070-36-S EMI filter is a component designed to protect advanced power systems from electromagnetic interference at high loads up to 36 A. Its design makes it ideal for industrial control systems, server rooms, high-power power supplies and installations requiring uncompromising operational stability.
M4 screw connectors ensure a durable and secure connection even with larger cross-section cables, while the metal housing guarantees effective interference shielding and resistance to external influences. EN2070-36-S is an industrial-grade interference filter - designed for use in harsh environments where reliability and continuity of operation are important.
