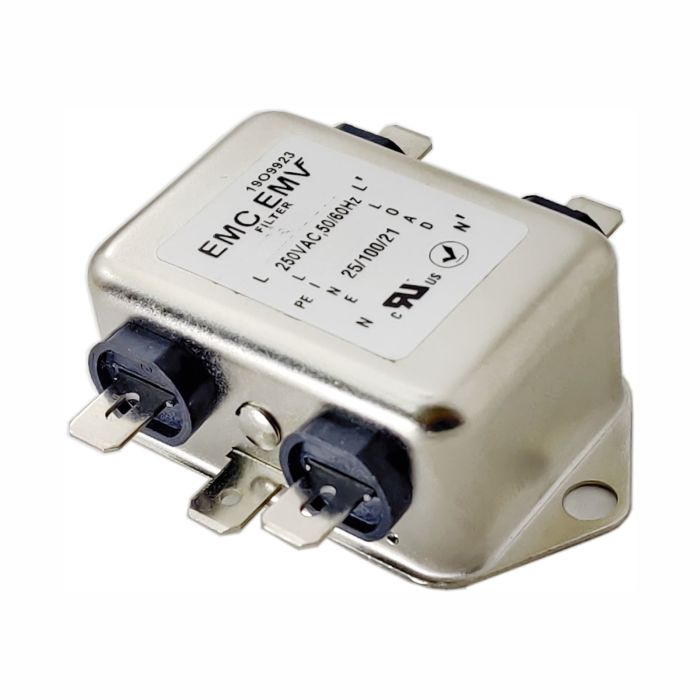

Single phase EMI filter Akyga EMC EMV EN2030-3-F 3A 120-250VAC 50/60Hz
- Product code EN2030-3-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current3 A
- Leads6.3 mm connectors
- Leakage current0.30mA @120 VAC 60 Hz, 0.52mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)71 x 68 x 22 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138606
Description
The EN2030-3-F EMI filter is an effective protection for electronic equipment operating at moderate loads. With a maximum current of 3 A and low leakage current, it is ideal for systems requiring precise operation and stable power supply - such as office equipment, building automation or laboratory equipment.
The use of 6.3 mm connectors makes for easy installation, and the metal housing not only provides durability but also effective shielding against external interference. The EN2030-3-F EMI filter is a silent guardian of voltage quality - guaranteeing that your devices will operate smoothly, regardless of interference from the mains supply.
