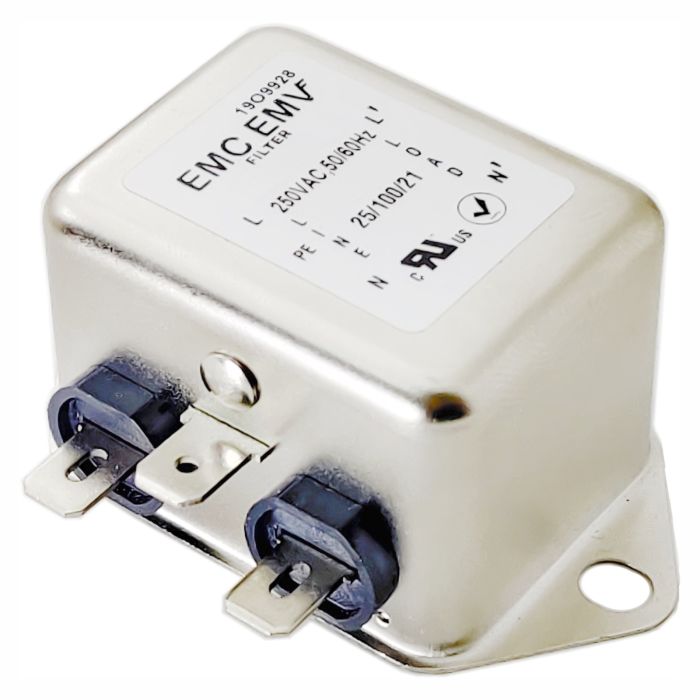

Single phase EMI filter Akyga EMC EMV EN2030-10-F 10A 120-250VAC 50/60Hz
- Product code EN2030-10-F
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current10 A
- Leads6.3 mm connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)86 x 52 x 29 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138637
Description
The EN2030-10-F EMI filter is an efficient and reliable solution for protecting equipment operating at up to 10 A from electromagnetic interference. Thanks to its universal design, it is ideal for a wide range of applications - from industrial equipment to audio devices to control systems in automation. The bipolar design ensures effective interference suppression.
The 6.3 mm connectors allow quick and convenient installation, and the durable metal housing protects the filter from external influences. The EN2030-10-F EMI interference filter provides assurance of operation even in harsh conditions - reliable where power supply stability is crucial.
