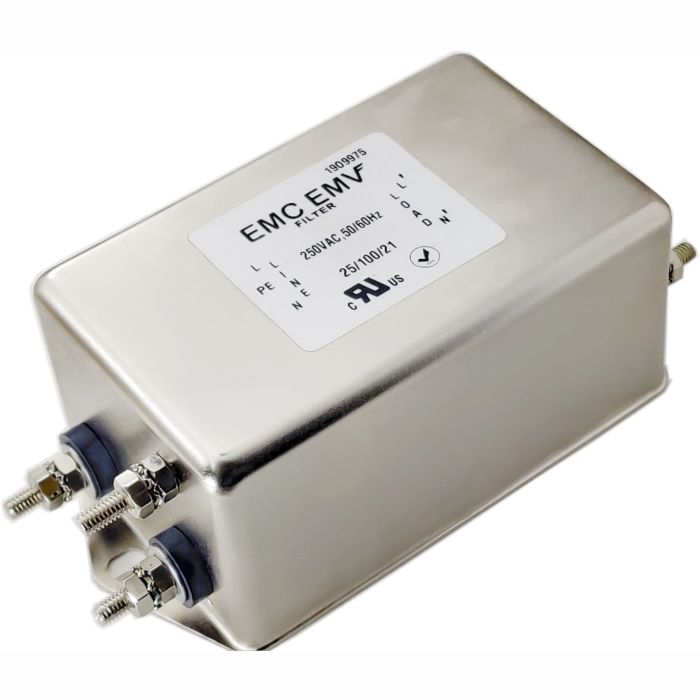

Single phase EMI filter Akyga EMC EMV EN2090-20-S 20A 120-250VAC 50/60Hz
- Product code EN2090-20-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current20 A
- LeadsM4 connectors
- Leakage current1.00mA @120 VAC 60 Hz, 1.73mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)124 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139030
Description
The EN2090-20-S EMI filter is a professional solution designed to protect systems operating with loads up to 20 A. It is ideal for industrial applications, large automation installations, server systems and other demanding systems where voltage stability and purity are crucial.
With its M4 screw connectors, it provides a durable, secure connection even with thicker wiring and higher currents. The metal housing guarantees effective shielding against electromagnetic interference and high resistance to harsh environments. The EN2090-20-S is an interference filter that combines robustness, efficiency and reliability in one compact design.
