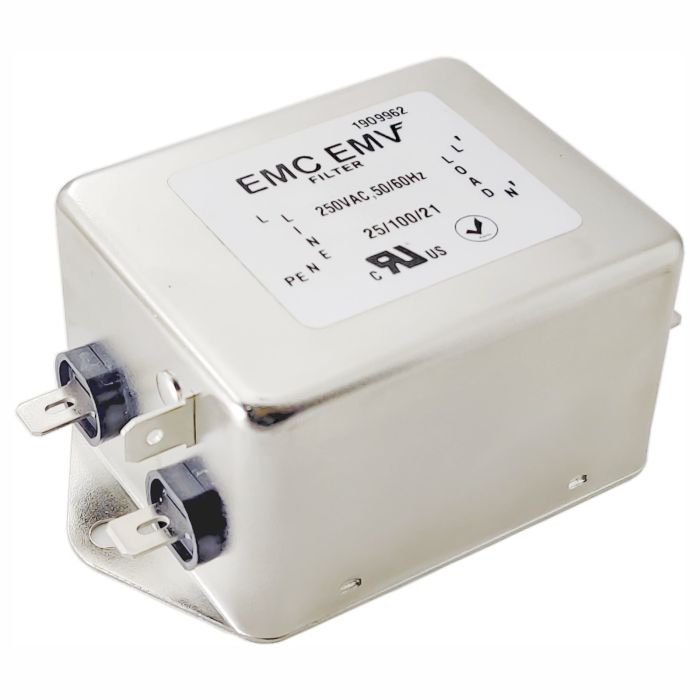

Single phase EMI filter Akyga EMC EMV EN2070-12-F 12A 120-250VAC 50/60Hz

  • Product code EN2070-12-F
  • Product typeEMI Filter
  • Filter typeAnti-interference
  • Maximum working current12 A
  • Leads6.3 mm connectors
  • Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
  • Number of poles2
  • MaterialMetal
  • Temperature -25`C - +100`C
  • Product size (L x W x H)153 x 57 x 45 mm
  • CE compatibilityYes
  • RoHS compatibilityYes
  • REACH compatibilityYes
  • EAN code5901720138828
Description

The EN2070-12-F EMI filter is a robust and proven solution for applications requiring reliable protection against electromagnetic interference at medium and higher loads. Rated for up to 12 A, it is ideal for automation systems, power supplies, industrial equipment and anywhere where clean power supply and operational reliability are important.

Thanks to the 6.3 mm connectors, installation is quick and easy and the compact metal housing ensures durability and effective interference shielding. The EN2070-12-F interference filter combines functionality and robustness, providing a key component in any installation where equipment stability matters.
