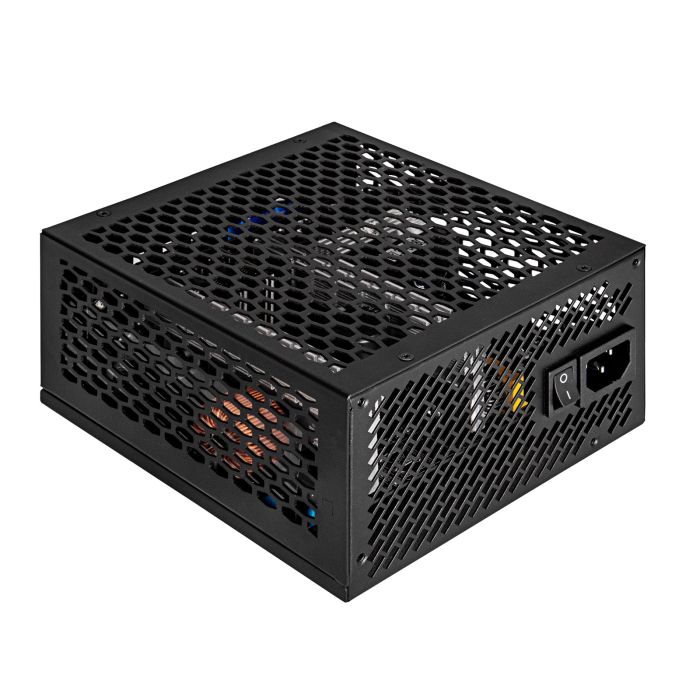

Passive ATX Power Supply 400W Akyga AK-FL-400 Full-Modular PCI-E 6+2 pin 4x SATA APFC 80+ Fanless
Usefull materials
- Product code AK-FL-400
- Product typeComputer power supply
- FormatATX 2.31
- SeriesFanless
- Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Supply voltage230 V
- Power consumption5 A
- Efficiency> 80 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail18 A
- Current on the +5V rail 18 A
- Maximum load on +3.3V and +5V line75 W
- Current on the +12V rail33.4 A
- Maximum load on 12V line312 W
- Maximum power400 W
- Mainboard Power Connector24-pin
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6+2 pin 1 pc
- Molex connector2 pcs
- SATA connector4 pcs
- Modular power supplyYes
- PFC filterActive
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPYes
- Power supply connectorIEC C14
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- MTBF100000 h
- Temperature0 - 40 °C
- PackageEcoBox
- Product size (L x W x H)85 x 150 x 160 mm
- Net weight1218 g
- Gross weight1888 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139290
- Warranty24 months
Description
The Akyga® AK-FL-400 is a modular ATX power supply unit with an output of 400 W. Its main and most distinctive feature is the absence of a built-in fan. This makes it an excellent choice for compact and, above all, quiet computer systems. However, what really sets the AK-FL-400 apart is its modularity. The user has complete freedom in the configuration of the cables, which not only enables a better organisation of the cables in the case, but also optimises airflow, favouring more efficient heat dissipation. Furthermore, a major advantage of the AK-FL-400 ATX power supply is its high efficiency, which complies with the requirements of the 80 PLUS certification.
Among the available modular connectors:
- P1 (20+4-pin) for motherboard connection, ensuring compatibility with various interfaces,
- P8 (4+4-pin) offering additional power for CPUs, especially demanding ones,
- PCI-e 4+4-pin, ideal for graphics cards,
- 4 SATA connectors for the connection of HDD/SSD drives, and
- 2 Molex connectors for legacy devices or fans.
