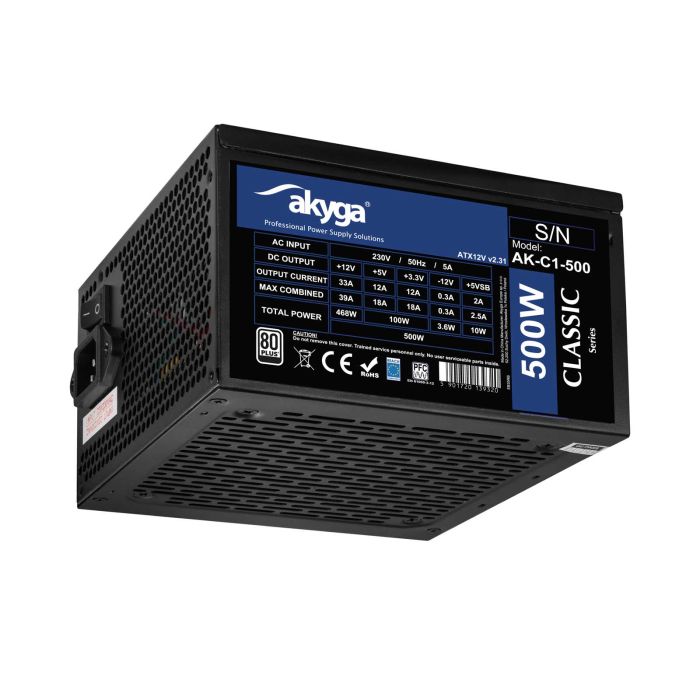

ATX Power Supply 500W Akyga AK-C1-500 P4+4 2x PCI-E 6+2 pin 4x SATA 2x Molex APFC FAN 12cm
- Product code AK-C1-500
- Product typeComputer power supply
- FormatATX 2.31
- SeriesClassic
- Supply voltage230 V
- Power consumption< 5 A
- Efficiency> 80 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail12 A
- Current on the +5V rail 12 A
- Maximum load on +3.3V and +5V line100 W
- Current on the +12V rail33 A
- Maximum load on 12V line468 W
- Maximum power500 W
- Mainboard Power Connector24-pin
- Power connector EPS12V 8 pin 1 pc
- Power connector PCI-E 6+2 pin 2 pcs
- Molex connector2 pcs
- SATA connector4 pcs
- Modular power supplyNo
- PFC filterActive
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPNone
- Power supply connectorIEC C14
- Fan size120 mm
- Fan adjustmentsAutomatic
- Cable length45 - 75 cm
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- Temperature5 - 50 °C
- PackageEcoBox
- Product size (L x W x H)150 x 145 x 85 mm
- Package size (L x W x H)235 x 180 x 100 mm
- Net weight1320 g
- Gross weight1878 g
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720139320
- Warranty24 months
The Akyga® AK-C1-500 ATX power supply from the Classic series is a high-quality device designed to provide stable and reliable power to advanced computer systems. It is characterized by a true power of 500 W, making it an ideal solution for users looking for high efficiency and performance. The AK-C1-500 computer power supply also features compliance with 80 PLUS certification. This means that the unit operates with minimal power loss, guaranteeing eco-friendly and economical use. What's more, the power supply is equipped with an APFC (Active Power Factor Correction) filter, which optimizes the power factor, also leading to reduced energy consumption.
The AK-C1-500 ATX PC power supply offers a comprehensive set of connectors. A P4+4 connector, two PCI-E 6+2 pin connectors, four SATA connectors and two Molex connectors are available to connect multiple components such as hard drives, SSD drives, graphics cards and other peripherals. These connectors are placed on flat cables, which is particularly appreciated by users due to the ease of cable management inside the PC case. This translates into better airflow and simplifies the process of building or upgrading a system. Flat cables are less likely to become tangled, which further facilitates the maintenance of tidiness and aesthetics inside the case. They not only enable better cable management, but also contribute to increased overall cooling efficiency by optimizing airflow inside the case.
The AK-C1-500 ATX power supply unit uses modern electronic components that comply with current technological standards. Carefully selected components guarantee the device's durability and stable operation. They have been developed for long-term and intensive use in mind, ensuring the system's reliability.
The design of the ATX power supply is kept in an elegant black case, which will perfectly fit into the aesthetics of most computer cases, adding a modern and professional look. What's more, inside the ATX power supply there is a quiet but efficient 12 cm fan, which ensures excellent air circulation and thus maintains the optimal operating temperature of the device without increasing noise levels.
