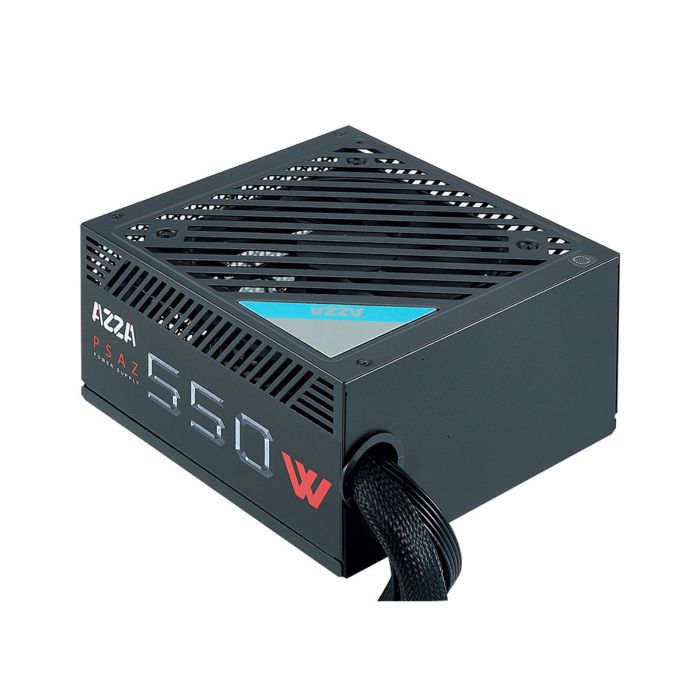

ATX Power Supply 550W AZZA PSAZ-550W, 3xSATA 1xPCI-Ex, 1xEPS, 80+ bronze FAN12cm RoHS
- Product code PSAZ-550W
- Product typeComputer power supply
- FormatATX 2.31
- Responsible EntityLinkworld Computer GmbH, Otto-Schott-Str. 4, 41542 Dormagen, Germany, [email protected]
- Supply voltage230 V
- Power consumption< 8 A
- Efficiency> 80 %
- 80 PLUS compatibilityYes
- 80 PLUS certificate80+ Bronze
- Current on the +3.3V rail15 A
- Current on the +5V rail 15 A
- Maximum load on +3.3V and +5V line100 W
- Current on the +12V rail45 A
- Maximum load on 12V line540 W
- Maximum power550 W
- Mainboard Power Connector20+4-pin
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6+2 pin 2 pcs
- Molex connector2 pcs
- Mini-Molex connector1 pc
- SATA connector5 pcs
- Modular power supplyNo
- Mechanical switchYes
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPNone
- Power supply connectorIEC C14
- Fan size120 mm
- Fan adjustmentsAutomatic
- The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2IEC C13
- Power cable included Yes
- MaterialGalvanized steel
- Product colorBlack
- Temperature5 - 50 °C
- PackageEcoBox
- Product size (L x W x H)150 x 145 x 85 mm
- Package size (L x W x H)235 x 180 x 100 mm
- Net weight1.76 kg
- Gross weight1.97 kg
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code4712839557230
- Warranty24 months
The efficient and reliable AZZA desktop computer power supply – model PSAZ-550W – is the perfect choice for users looking for stable power at an affordable price. It offers 550 W of power and is 80 PLUS Bronze certified, ensuring high energy efficiency and lower heat loss.
Quiet operation and modern technical solutions
Equipped with a 120 mm fan, the power supply ensures quiet and efficient operation across the entire load range. The use of a single +12V line with an intensity of up to 45A enables stable power supply even to more demanding components, such as modern graphics cards. In addition, the universal AC input range of 100 to 240 V makes the device compatible with power grids around the world.
Complete cabling and easy installation
The PSAZ-550W model is equipped with a set of the most commonly used connectors. The user has access to a main ATX 20+4-pin connector, an EPS 4+4-pin connector for the processor, and two PCI-E 6+2-pin connectors for connecting graphics cards. In addition, the power supply offers five SATA connectors, two Molex connectors, and one FDD (floppy) connector. Flat cables not only facilitate cable management in the case, but also improve air circulation inside the computer.
Full protection and compliance with standards
The power supply is equipped with a complete set of protections, such as UVP (against undervoltage), OVP (against overvoltage), OPP (against overload), OCP (overcurrent protection) and SCP (short-circuit protection). It also meets stringent safety and quality standards, including FCC, CE, TUV, RoHS and RCM, making it a reliable choice for years to come.
