Power Supply TFX 300W Akyga AK-T1-300 P4 3x SATA Molex APFC FAN 8cm
- Product code AK-T1-300
- Product typeComputer power supply
- FormatTFX
- SeriesUltimate
- Supply voltage230 V
- Power consumption< 3 A
- Efficiency> 80 %
- 80 PLUS compatibilityYes
- Current on the +3.3V rail15 A
- Current on the +5V rail 15 A
- Maximum load on +3.3V and +5V line100 W
- Current on the +12V rail20 A
- Maximum load on 12V line240 W
- Maximum power300 W
- Power inlet IEC C14
- Mainboard Power Connector24-pin
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6 pin None
- Power connector PCI-E 6+2 pin None
- Power connector PCI-E 8 pin None
- Molex connector1 pc
- Mini-Molex connectorNone
- SATA connector3 pcs
- PFC filterActive
- Ground wireYes
- OVPYes
- OCPYes
- OPPYes
- OTPYes
- SCP Yes
- UVPYes
- Fan size80 mm
- Fan adjustmentsAutomatic
- Cable length8 -36 cm
- Power cable included None
- MaterialGalvanized steel
- Product colorGrey
- MTBF100000 h
- Temperature5 - 50 °C
- PackageFoil
- Product size (L x W x H)175 x 85 x 65 mm
- Package size (L x W x H)252 x 110 x 68 mm
- Net weight836.4 g
- Gross weight846.4 g
- CE compatibilityYes
- FCC compatibilityNo
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720132857
- Warranty24 months

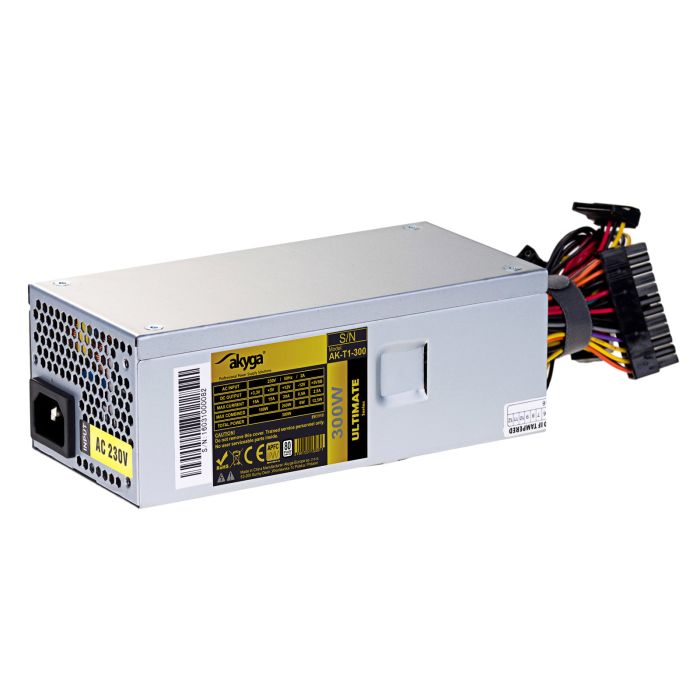

The Akyga® TFX power supply 300W is an advanced, compact power adapter dedicated to mini and media PC systems. It supports all the latest construction standards, ensuring high performance and stability.
The power supply features a 4-pin connector, MOLEX connector, 3 x SATA connector and universal 24-pin motherboard connector. A guarantee of high efficiency is the 80 PLUS® compatibility which ensures that at least 80% of energy provided by the power supply is received by computer’s components and a maximum of 20% of energy is lost in the form of heat. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer. Effective cooling is provided by efficient, silent fan of 8 cm diameter. The power supply is ideal for small and medium-sized cases thanks to optimized 36 cm long set of cables. Product is made of durable galvanized steel.
An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. The TFX AK-T1-300 power supply is a high quality product that meets the current requirements and corresponds to modern standards.
