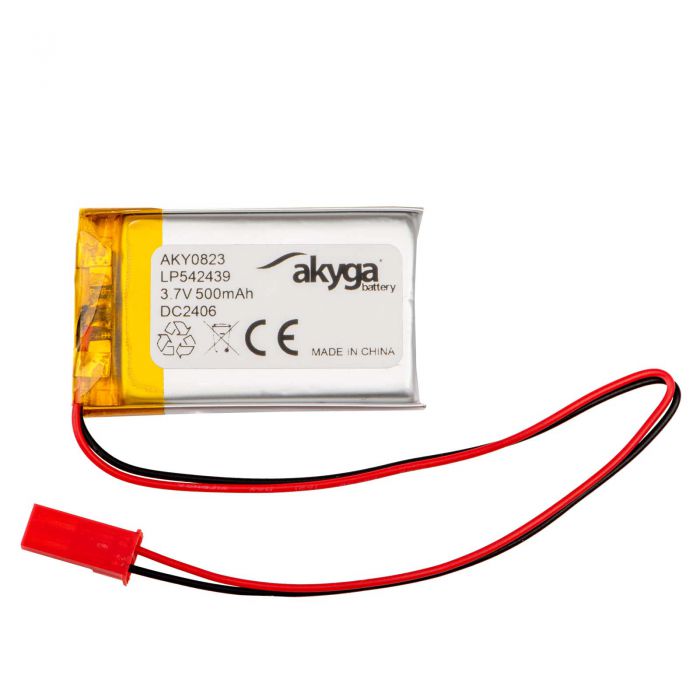

Lithium Polymer Battery Akyga AKY0823 LP542439 Li-Po 3.7V / 500mAh PCM JST 2.54 2Pin Connector 150mm

  • Product code AKY0823
  • Part numberLP542439
  • Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
  • Product typePolymer Li-Ion Battery
  • Rated voltage3.7 V
  • Battery capacity500 mAh
  • ProtectionPCM
  • Leads wires, connector+socket
  • Thickness5.4 mm
  • Width24 mm
  • Height39 mm
  • Connector type2,54 JST, 2 pins
  • Connector part numberJST SYP-02T-1
  • Cable length150 mm
  • PackageUniBag
  • Product size (L x W x H)39 x 24 x 5.4 mm
  • Net weight12 g
  • CE compatibilityYes
  • RoHS compatibilityYes
  • MSDS compatibilityYes
  • EAN code5906574243384
  • Warranty24 months
Description

The Akyga® AKY0823 is a lithium-polymer LP542439 battery with a voltage of 3.7 V and a capacity of 500 mAh. Thanks to its compact design and reliable performance, it is the ideal choice for powering small portable devices, remote-controlled models or smart systems.

State-of-the-Art Lithium-Polymer Technology

The Akyga® AKY0823 Li-Po battery is based on advanced lithium-polymer technology, which ensures high performance and a long service life. With a capacity of 500 mAh, it provides a reliable and stable power supply and the lack of memory effect allows the full use of the available energy on each charge. Its slim casing, with a thickness of 5.4 mm, makes it ideal for devices with limited space.

PCM Protection – Maximum Safety

The battery is equipped with a PCM (Protection Circuit Module) that protects against overcharging, over-discharge and short-circuit. This ensures safe use and extends the service life of both the cell itself and connected devices.

Easy Installation and Versatile Compatibility

Akyga® AKY0823 has 150 mm long cables terminated with a 2-pin JST connector. Such a set-up enables quick and easy installation, eliminating the need for soldering. The universal connector makes the battery easy to integrate into a wide range of devices.

Wide Range of Applications

The LP542439 battery will be ideal for small multimedia devices, cameras, medical devices and remote-controlled models. Its compact dimensions combined with high performance make it a reliable solution for a variety of applications.

Eco-Friendly and Durable Design

Akyga® AKY0823 is a reusable product that combines high performance with environmental care. The absence of electrolytes and carbonaceous materials in the cell's design makes it environmentally friendly, and the low self-discharge rate allows for long-term storage without loss of properties.
