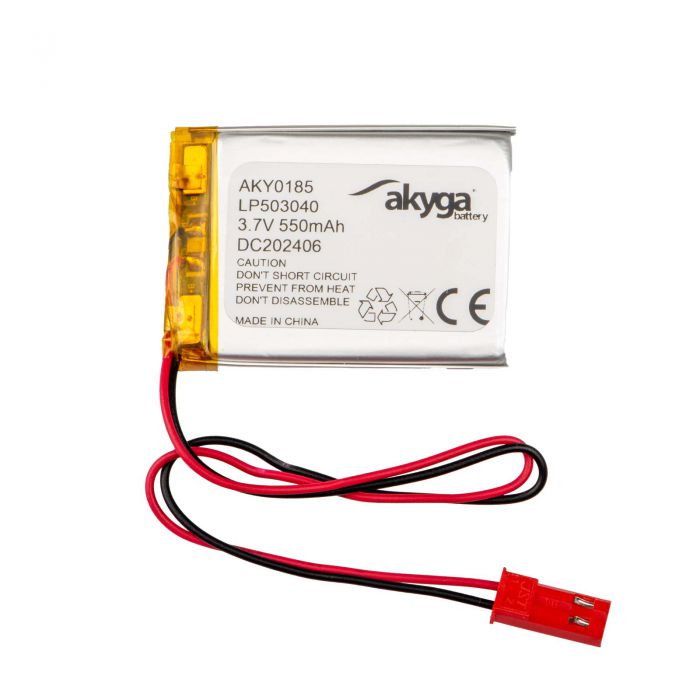

Lithium Polymer Battery Akyga AKY0185 LP503040 Li-Po 3.7V / 550mAh PCM JST 2.54 2Pin Connector 150mm
- Product code AKY0185
- Part numberLP503040
- Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product typePolymer Li-Ion Battery
- Rated voltage3.7 V
- Battery capacity550 mAh
- ProtectionPCM
- Leads wires, connector+socket
- Thickness5 mm
- Width30 mm
- Height40 mm
- Connector type2,54 JST, 2 pins
- Connector part numberJST SYP-02T-1
- Cable length150 mm
- PackageUniBag
- Product size (L x W x H)40 x 30 x 5 mm
- Net weight13 g
- CE compatibilityYes
- RoHS compatibilityYes
- MSDS compatibilityYes
- EAN code5906574243391
- Warranty24 months
Lithium-polymer batteries are a power source with wide application and high quality. This rechargeable battery has a nominal voltage of 3.7 V and a capacity of 550 mAh. The PCM protection protects the battery against overcharging, excessive discharge and short circuit. Wires soldered to the 150 mm long battery are terminated with a 2.54 JST connector, 2 pins, which simplifies assembly considerably. Akyga rechargeable batteries can be used for all kinds of high-quality projects, due to the technology that allows you to achieve significant capacities while maintaining small dimensions of the lithium-polymer battery.
The rechargeable batteries have certificates such as: CE, RoHS, MSDS.
Before using, please read the rules of use, as any incorrect installation may result in damage to the batteries.
