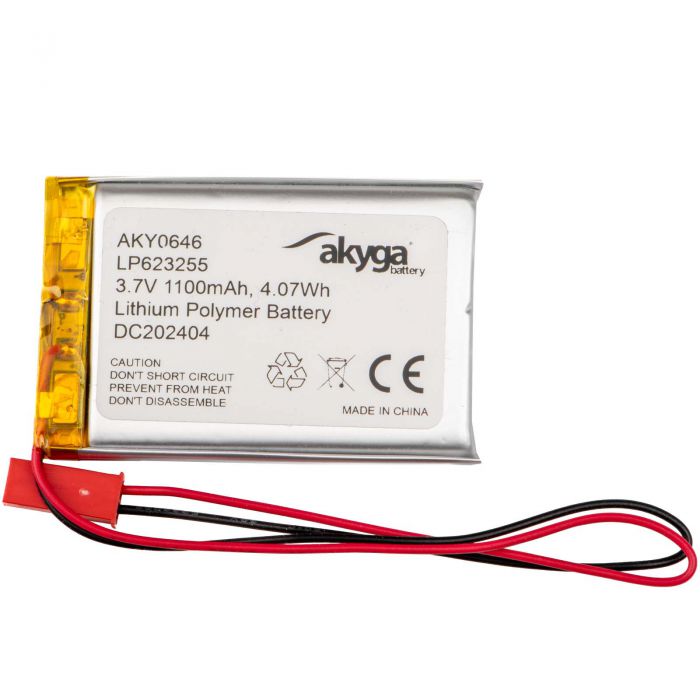

Lithium Polymer Battery Akyga AKY0646 LP623255 Li-Po 3.7V/1100mAh PCM JST 2.54 2-Pin Connector 150mm

  • Product code AKY0646
  • Part numberLP623255
  • Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
  • Product typePolymer Li-Ion Battery
  • Rated voltage3.7 V
  • Battery capacity1100 mAh
  • ProtectionPCM
  • Leads wires, connector+socket
  • Thickness6.2 mm
  • Width32 mm
  • Height55 mm
  • Connector type2,54 JST, 2 pins
  • Connector part numberJST SYP-02T-1
  • Cable length150 mm
  • PackageUniBag
  • Product size (L x W x H)55 x 32 x 6.2 mm
  • Net weight22 g
  • CE compatibilityYes
  • RoHS compatibilityYes
  • MSDS compatibilityYes
  • EAN code5906574243506
  • Warranty24 months
Description

The LP623255 lithium polymer battery is a power source with a wide range of applications. It has a nominal voltage of 3.7 V and a capacity of 1100 mAh. The technology used allows for obtaining large capacities with a small battery size. That is why Akyga Li-Po batteries are ideally suited to power all kinds of high-end projects. To facilitate battery installation, 150 mm long cables with 2.54 JST 2 pin connector are attached to the battery.

The battery is compliant with the following certificates: CE, RoHS, MSDS.

Before using, read the rules for using lithium polymer batteries. Incorrect use may lead to their damage.
