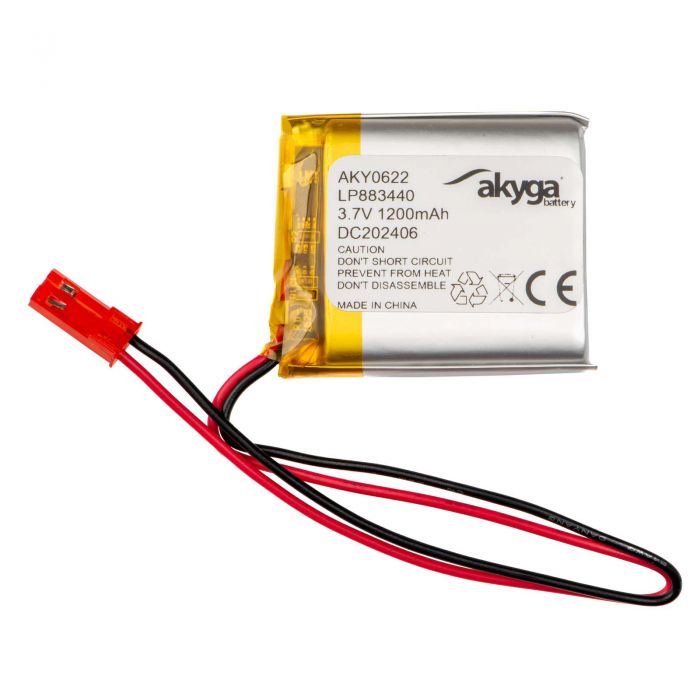

Lithium Polymer Battery Akyga AKY0622 LP883440 Li-Po 3.7V/1200mAh PCM JST 2.54 2-Pin Connector 150mm

  • Product code AKY0622
  • Part numberLP883440
  • Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
  • Product typePolymer Li-Ion Battery
  • Rated voltage3.7 V
  • Battery capacity1200 mAh
  • ProtectionPCM
  • Leads wires, connector+socket
  • Thickness8.8 mm
  • Width34 mm
  • Height40 mm
  • Connector type2,54 JST, 2 pins
  • Connector part numberJST SYP-02T-1
  • Cable length150 mm
  • Product size (L x W x H)40 x 34 x 8.8 mm
  • Net weight24 g
  • CE compatibilityYes
  • RoHS compatibilityYes
  • MSDS compatibilityYes
  • EAN code5906574243513
  • Warranty24 months
Description

Lithium polymer batteries can be packaged in series or in parallel, increasing their voltage or capacity. AKY0622 with a nominal voltage of 3.7V and a capacity of 1200mAh. It has a built-in PCM protection from which there are two 150mm long cables. Akyga's extensive range includes rechargeable batteries in various configurations with a capacity from 30 mAh to 10,000 mAh and voltages from 3.7 V to 7.4 V.

The battery specified is in accordance with the MSDS, CE, RoHS certificates.

Before assembly, read the rules for using lithium polymer batteries. Incorrect use may lead to their damage
