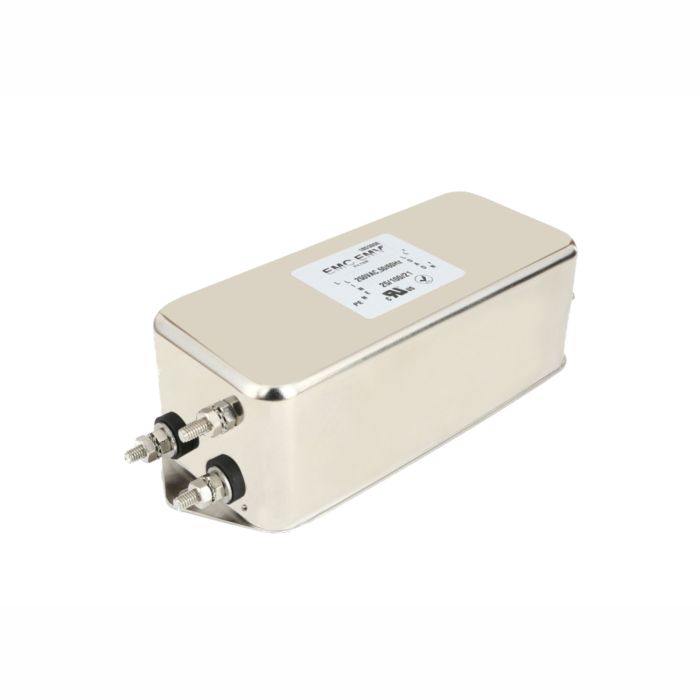

Single phase EMI filter Akyga EMC EMV EN2070-25-S 25A 120-250VAC 50/60Hz
- Product code EN2070-25-S
- Product typeEMI Filter
- Filter typeAnti-interference
- Maximum working current25 A
- LeadsM4 connectors
- Leakage current0.43mA @120 VAC 60 Hz, 0.74mA @250 VAC 50 Hz
- Number of poles2
- MaterialMetal
- Temperature -25`C - +100`C
- Product size (L x W x H)162 x 57 x 45 mm
- CE compatibilityYes
- RoHS compatibilityYes
- REACH compatibilityYes
- EAN code5901720138859
Description
The EN2070-25-S EMI filter is the professional solution for demanding power systems where operational stability and protection from electromagnetic interference are absolutely crucial. Supporting up to 25 A, it is ideal for industrial environments, automation, large power supply and server installations.
Thanks to its M4 screw connectors, it provides a robust and durable connection, even with higher loads and thicker cabling. The metal housing guarantees high mechanical resistance and effective interference shielding. The EN2070-25-S is a noise filter that combines power, reliability and ease of integration - ideal for applications where uncompromising power quality matters.
