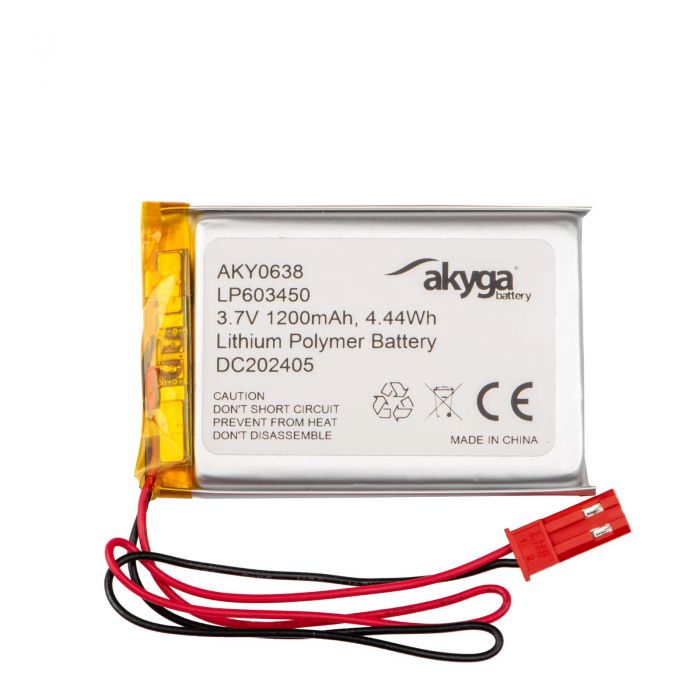

Lithium Polymer Battery Akyga AKY0638 LP603450 Li-Po 3.7V/1200mAh PCM JST 2.54 2-Pin Connector 100mm

  • Product code AKY0638
  • Part numberLP603450
  • Responsible EntityRopla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
  • Product typePolymer Li-Ion Battery
  • Rated voltage3.7 V
  • Battery capacity1200 mAh
  • ProtectionPCM
  • Leads wires, connector+socket
  • Thickness6 mm
  • Width34 mm
  • Height50 mm
  • Connector type2,54 JST, 2 pins
  • Connector part numberJST SYP-02T-1
  • Cable length100 mm
  • PackageUniBag
  • Product size (L x W x H)50 x 34 x 6 mm
  • Net weight22 g
  • CE compatibilityYes
  • RoHS compatibilityYes
  • MSDS compatibilityYes
  • EAN code5906574243520
  • Warranty24 months
Description

AKY0638 Li-Po batteries with protection are an advanced power source with a wide range of applications. They have a capacity of 1200 mAh and a nominal voltage of 3.7V. The technology used allows for a small battery size, without limiting the freedom to choose the capacity. That is why lithium-polymer batteries from Akyga are ideally suited to power all kinds of portable devices of various sizes and shapes. In addition, the PCM protection used protects the batteries against overcharging, excessive discharge and short circuit, and the 150 mm long cables attached to it, terminated with a 2.54 JST 2 pin connector, facilitate installation.

The battery is compliant with the following certificates: CE, RoHS, MSDS.

Before installation, familiarize yourself with the rules of using lithium polymer batteries. Incorrect use may lead to their damage.
